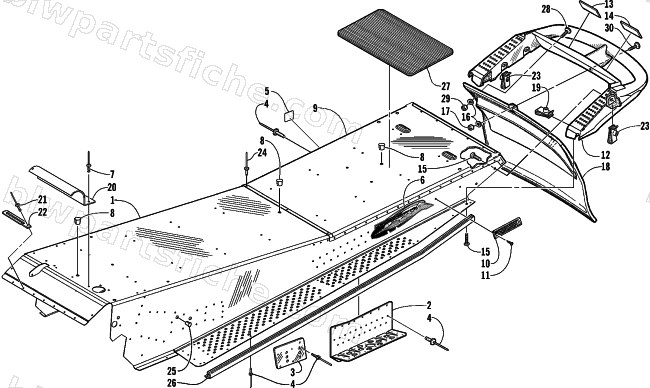

2000 Arctic Cat POWDER SPECIAL 600 LE () — TUNNEL AND REAR BUMPER
2000 POWDER SPECIAL 600 LE ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-878 | TUNNEL, ASSY (P/S THC/MC) | 1 | $900.95 | |
| 2 | 2706-766 | BRKT,RR SUSP MTG-RH PTD BLK | 1 | $184.95 | |
| 3 | 2706-767 | BRKT,RR SUSP MTG-LH PTD BLK | 1 | $211.95 | |
| 3 | 2706-116 | PLATE, BODY-REINFORCEMENT-PTD BLK | 1 | $6.75 | |
| 4 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 5 | 0411-053 | DECAL,TUBE-CE | 1 | $100.95 | |
| 6 | 3611-604 | DECAL,TUNNEL TMX-RH | 1 | $29.95 | |
| 6 | 3611-605 | DECAL,TUNNEL TMX-LH | 1 | $29.95 | |
| 7 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 8 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 9 | 1606-929 | PLATE,END - REAR (2000 PS) | 1 | $189.95 | |
| 10 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 11 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 12 | 1606-200 | BUMPER,REAR-Z,ZL,ZR | 1 | $142.95 | |
| 13 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 14 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 15 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 1606-202 | SNOWFLAP-BLK (99 PROD) | 1 | $96.95 | |
| 18 | 1606-507 | SNOWFLAP, REV. | 1 | $74.95 | |
| 19 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 20 | 0607-751 | BRKT,PROTECTOR-MAIN HARNESS | 1 | $17.95 | |
| 21 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 22 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 23 | 0623-771 | NUT,U-1/4-20 (.50 X .25 PANEL) | 1 | $1.64 | |
| 24 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 25 | 0606-983 | PLUG,BODY 3/8-BLACK | 1 | $1.92 | |
| 26 | 1606-932 | ROLL,TUNNEL-RH-FORMED PWDR | 1 | $68.95 | |
| 26 | 1606-933 | ROLL,TUNNEL-LH-FORMED PWDR | 1 | $68.95 | |
| 27 | 1606-444 | PAD,RUBBER-RIBBED | 1 | $31.95 | |
| 28 | 8017-577 | SCREW,MACH-TSTRH 1/4-20 X 1/2 GR2 Z&Y | 1 | $1.23 | |
| 29 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 30 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 |
