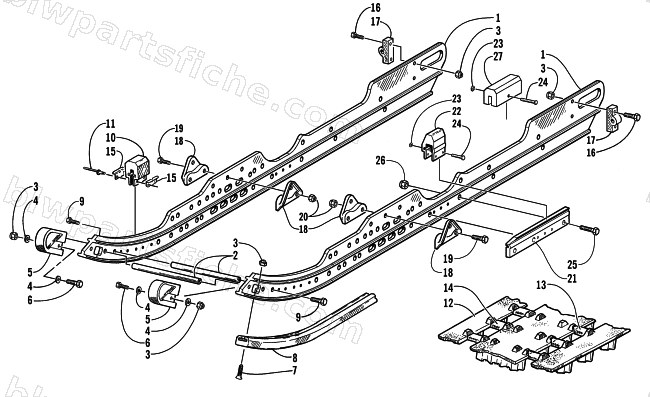

2000 Arctic Cat POWDER SPECIAL 600 LE () — SLIDE RAIL AND TRACK ASSEMBLY
2000 POWDER SPECIAL 600 LE ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 7995-005 | REAR SUSPENSION-MFG ASSY 2000 | 1 | $3,871.95 | |
| 1 | 1604-606 | RAIL,FORMED-STAMPED 136" (PS-LOW PROFILE | 1 | $269.95 | |
| 2 | 0604-426 | AXLE, XBRC-.625X8.750 (5/16-18) | 1 | $34.95 | |
| 3 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 4 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 5 | 1604-137 | NOSEPIECE,RAIL-BLUNT | 1 | $6.75 | |
| 6 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 7 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 8 | 2604-257 | WEARSTRIP,SLIDE RAIL-BLK | 1 | $33.95 | |
| 9 | 8012-134 | SCREW,CAP-HHNLP 5/16-18X1.25 G5 Z&Y | 1 | $1.95 | |
| 10 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 11 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 12 | 6799-842 | TRACK,15X136"X2" CHALLENGER-3/5-12 'A' | 1 | $1,028.95 | |
| 13 | 2602-383 | CLIP,GUIDE | 1 | $4.26 | |
| 14 | 2602-384 | CLIP,WEAR | 1 | $3.57 | |
| 15 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 16 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 17 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 18 | 2604-159 | BRACKET, MTG - FRONT ARM-PTD BLK | 1 | $30.95 | |
| 19 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 20 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 21 | 1604-488 | BRACE,RAIL-RH (99 PRO) | 1 | $60.95 | |
| 21 | 1604-489 | BRACE,RAIL-LH (99 PRO) | 1 | $60.95 | |
| 23 | 0623-773 | PUSHNUT - 3/16 DIA STUD | 1 | $1.09 | |
| 24 | 0623-772 | RIVET,SOLID-3/16X1.5 | 1 | $0.95 | |
| 25 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 26 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 27 | 1604-607 | PAD,SHOCK-RUBBER PWDR | 1 | $15.11 |
