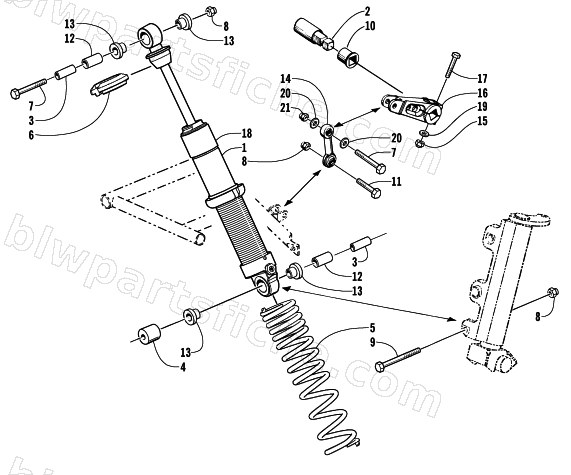

2000 Arctic Cat POWDER SPECIAL 600 EFI LE () — SHOCK ABSORBER AND SWAY BAR ASSEMBLY
2000 POWDER SPECIAL 600 EFI LE ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-679 | SHOCK,SKI-FRONT SUSP(MELONITE) | 1 | $707.95 | |
| 2 | 0703-202 | SWAY BAR, 7/16-PAINTED | 1 | $108.95 | |
| 3 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 4 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 | |
| 5 | 0603-836 | SPRING,SKI SHOCK-PTD GREEN | 1 | $68.95 | |
| 6 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 8 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 9 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 10 | 0603-151 | BEARING,SWAY BAR-SQUARE | 1 | $23.39 | |
| 11 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 12 | 1603-209 | SLEEVE, EYELET - INNER - .790 TLG | 1 | $1.23 | |
| 13 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 14 | 1603-002 | LINK,SWAY BAR | 1 | $54.95 | |
| 15 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 16 | 0603-917 | ARM, SWAY BAR-PLASTIC | 1 | $70.95 | |
| 17 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 18 | 1603-271 | SLEEVE,WEAR-FRT SHOCK | 1 | $20.95 | |
| 19 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 20 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 21 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 |
