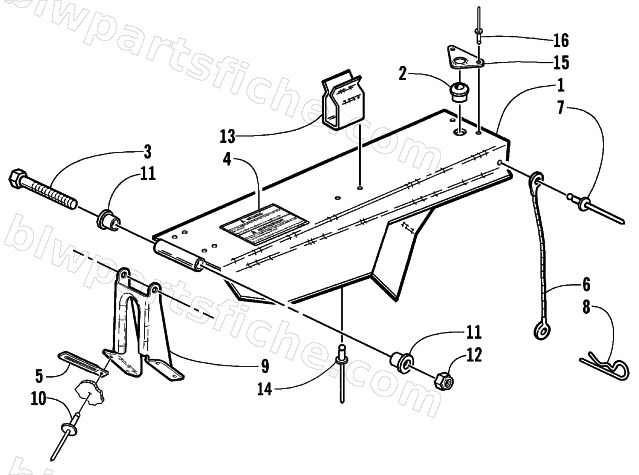

2000 Arctic Cat POWDER SPECIAL 500 EFI LE () — BELT GUARD ASSEMBLY
2000 POWDER SPECIAL 500 EFI LE ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-423 | GUARD ASSY.W/GROMMET & RETAINER | 1 | $148.95 | |
| 2 | 0607-549 | BUSHING, BELT GUARD | 1 | $3.02 | |
| 3 | 8002-050 | SCREW,CAP-HH 1/4-20 X2.75 G5 Z&Y | 1 | $2.95 | |
| 4 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 5 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 6 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 7 | 8060-426 | RIVET,BLIND-DH AA54 BLK | 1 | $0.12 | |
| 8 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 9 | 0707-706 | BRKT,MTG-GUARD-PTD BLK | 1 | $24.95 | |
| 10 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 11 | 0607-094 | INSERT,HINGE-GUARD | 1 | $0.95 | |
| 12 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 13 | 0636-659 | KIT, DRIVE BELT HOLDER | 1 | $13.73 | |
| 14 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 15 | 0607-550 | PLATE, BUSHING-BELT GUARD-PTD BLK | 1 | $12.95 | |
| 16 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 |
