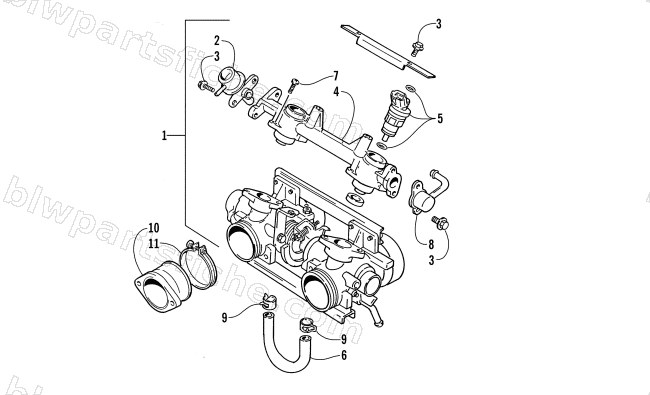

2000 Arctic Cat PANTERA 580 EFI () — THROTTLE BODY ASSEMBLY
2000 PANTERA 580 EFI ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-613 | BODY ASSY,THROTTLE (CIRCLE) | 1 | $1,636.95 | |
| 1 | 3005-587 | BODY ASSY,THROTTLE(SQUARE) | 1 | $2,365.59 | |
| 2 | 3005-074 | REGULATOR COMP, FUEL PRESSURE | 1 | $451.95 | |
| 3 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 4 | 3005-078 | PIPE, DELIVERY | 1 | $564.95 | |
| 5 | 3005-075 | INJECTOR ASSY, FUEL (CIRCLE) | 1 | $647.95 | |
| 5 | 3005-076 | INJECTOR ASSY, FUEL (SQUARE) | 1 | $666.95 | |
| 5 | 3005-077 | INJECTOR ASSY, FUEL (TRIANGLE) | 1 | $666.95 | |
| 6 | 3005-103 | HOSE, WATER | 1 | $68.95 | |
| 7 | 3005-320 | SCREW,M5X16 | 1 | $1.95 | |
| 8 | 3005-079 | PIPE COMP, FUEL INLET | 1 | $498.95 | |
| 9 | 3004-193 | CLAMP, HOSE-EFI THROTTLE BODY,M12 | 1 | $4.95 | |
| 10 | 3003-854 | PIPE,INTAKE | 1 | $159.95 | |
| 11 | 3004-463 | CLAMP,M58 | 1 | $34.95 |
