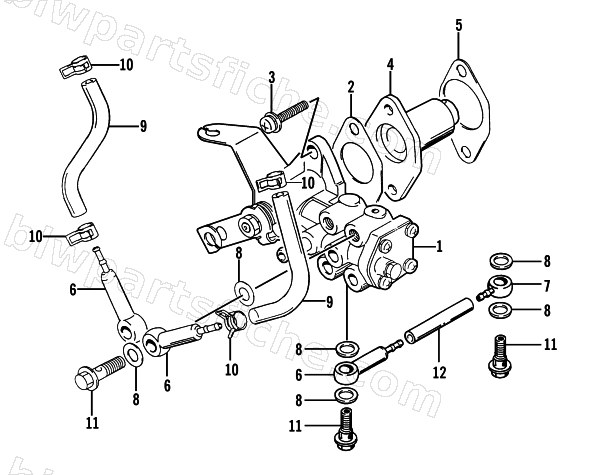

2000 Arctic Cat PANTERA 580 EFI — OIL PUMP
2000 PANTERA 580 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-481 | PUMP ASSY, OIL | 1 | $557.95 | |
| 2 | 3004-349 | GASKET, OIL PUMP | 1 | $12.35 | |
| 3 | 3007-421 | SCREW | 1 | $3.95 | |
| 4 | 3004-763 | RETAINER,OIL PUMP SHAFT | 1 | $133.95 | |
| 5 | 3004-286 | GASKET, RETAINER | 1 | $12.35 | |
| 6 | 3003-217 | CHECK VALVE | 1 | $38.95 | |
| 7 | 3003-661 | UNION,M2 | 1 | $13.95 | |
| 8 | 3402-009 | WASHER, DRIVEN, M6.2X11X1.2 | 1 | $2.47 | |
| 9 | 3008-035 | HOSE, M3X7X600 | 1 | $34.95 | |
| 10 | 3008-037 | CLAMP,HOSE,M6 | 1 | $3.85 | |
| 11 | 3004-346 | BOLT, UNION | 1 | $4.68 | |
| 12 | 3005-357 | HOSE, M2.5X7X600 | 1 | $24.77 |
