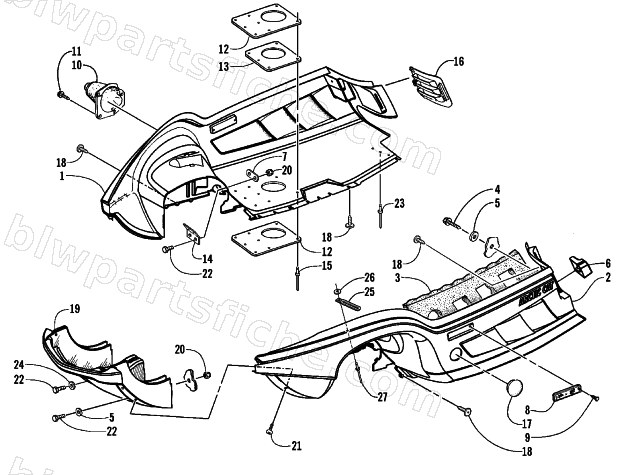

2000 Arctic Cat PANTERA 580 EFI — BELLY PAN AND FRONT BUMPER ASSEMBLY
2000 PANTERA 580 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1706-036 | BELLY PAN, RH BLU-ROUTED | 1 | $260.95 | |
| 3 | 0617-301 | FOAM,BELLYPAN - L.H. | 1 | $28.95 | |
| 4 | 0623-703 | SCREW,SELF TAP-HWH .25 X 2.5" Z&Y | 1 | $0.95 | |
| 5 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 6 | 1606-800 | SUPPORT, BELLYPAN-RH -BLUE | 1 | $30.95 | |
| 6 | 1606-449 | SUPPORT, BELLYPAN-LH (ZRT) | 1 | $30.95 | |
| 7 | 0612-359 | PLATE,BACKING-EXHAUST DEFLECTOR | 1 | $13.95 | |
| 8 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 9 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 10 | 0605-332 | BOOT,STEERING-DRAG LINK-RH | 1 | $40.95 | |
| 10 | 0605-409 | BOOT, STEERING-DRAG LINK-LH (ZRT) | 1 | $42.95 | |
| 11 | 0623-564 | SCREW,TAPPING #10 X 1.00 HWH | 1 | $3.57 | |
| 12 | 0612-545 | RING,EXHAUST OUTLET-LOWER | 1 | $8.95 | |
| 13 | 1612-111 | SEAL,EXHAUST | 1 | $16.95 | |
| 14 | 0612-278 | DEFLECTOR, EXHAUST OUTLET | 1 | $13.73 | |
| 15 | 8061-510 | RIVET,BLIND-LF SS58 BLACK | 1 | $0.81 | |
| 16 | 1606-798 | LOUVER, AIR INTAKE-RH-BLUE | 1 | $29.95 | |
| 16 | 1606-799 | LOUVER, AIR INTAKE-LH-BLUE | 1 | $28.95 | |
| 17 | 0623-600 | PLUG,BELLYPAN-2.00 | 1 | $4.82 | |
| 18 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 19 | 1606-326 | BUMPER, FRONT | 1 | $206.95 | |
| 20 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 21 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 22 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 23 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 24 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 25 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 26 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 27 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 |
