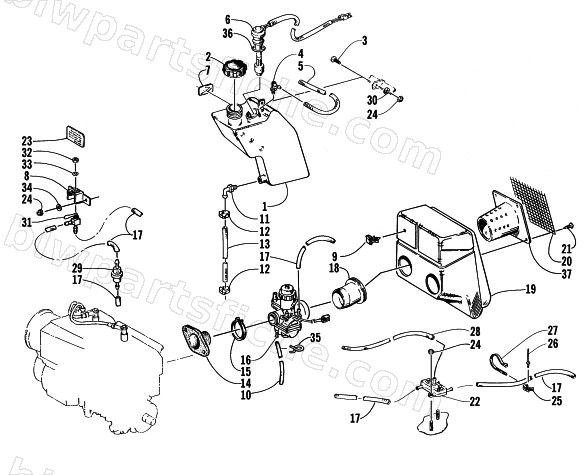

2000 Arctic Cat BEARCAT 440 II — OIL TANK, CARBURETOR, FUEL PUMP, AND SILENCER
2000 BEARCAT 440 II
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0670-239 | TANK,OIL | 1 | $83.95 | |
| 2 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 3 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 4 | 0670-242 | FITTING,VENT-90 DEGREE | 1 | $3.95 | |
| 5 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 6 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 7 | 1611-564 | DECAL,OIL TANK | 1 | $13.73 | |
| 8 | 0670-284 | BRACKET,MOUNTING-FUEL SHUT-OFF VALVE | 1 | $10.97 | |
| 9 | 0623-403 | CLAMP,PUSH MOUNT | 1 | $0.95 | |
| 10 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 11 | 0670-075 | FITTING,ELBOW | 1 | $4.54 | |
| 12 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 13 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 13 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 14 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 | |
| 15 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 16 | 0770-430 | CARB,VM34-432 W/SWITCH- ASSY | 1 | $485.95 | |
| 17 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 17 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 18 | 0670-080 | BOOT,AIR/CARB-VM34 | 1 | $34.95 | |
| 19 | 0770-397 | AIR SILENCER - ASSY, 99 BRC 440 II | 1 | $180.95 | |
| 20 | 0670-155 | SCREEN,AIR INTAKE | 1 | $44.95 | |
| 21 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 22 | 0636-272 | PUMP KIT,FUEL-RECT. | 1 | $42.95 | |
| 23 | 0611-978 | DECAL,FUEL SHUT-OFF VALVE | 1 | $10.95 | |
| 24 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 25 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 26 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 27 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 28 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 29 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 30 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 31 | 0670-144 | VALVE,SHUT OFF-FUEL | 1 | $50.95 | |
| 32 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 | |
| 33 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 34 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 35 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 36 | 0609-237 | SEAL,GROMMET-OIL SENSOR (REF 0609-224) | 1 | $3.44 | |
| 37 | 0670-151 | FUNNEL,AIR SILENCER | 1 | $29.95 |
