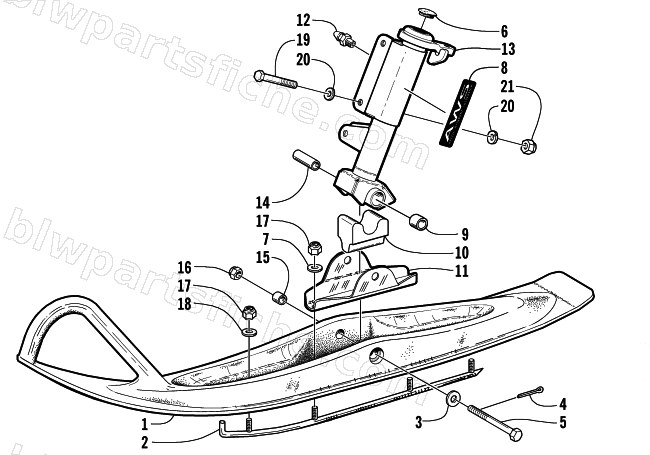

2000 Arctic Cat BEARCAT 340 — SKI AND SPINDLE ASSEMBLY
2000 BEARCAT 340
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0703-623 | SKAG,HARDWELD-PTD BLK | 1 | $34.95 | |
| 2 | 0703-251 | SKAG,CONSUMER-WELDMENT | 1 | $107.95 | |
| 3 | 8050-307 | WASHER,FLAT- 7/16 X .922 X .065 Z&Y | 1 | $0.15 | |
| 4 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 5 | 0623-776 | SCREW, CAP-HH 7/16-20 X 5.50 W/HOLE | 1 | $14.95 | |
| 6 | 0603-049 | CAP, SPINDLE | 1 | $0.68 | |
| 7 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 8 | 3611-468 | DECAL,SPINDLE-R.H. (2000 BC) | 1 | $19.95 | |
| 9 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 10 | 1603-257 | DAMPER,BLOWMOLDED SKI | 1 | $34.95 | |
| 11 | 1603-256 | SADDLE,SKI-PTD BLK | 1 | $50.95 | |
| 12 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 13 | 0703-266 | SPINDLE/HOUSING-MFG-ASS,Y RH | 1 | $260.95 | |
| 13 | 0703-267 | SPINDLE/HOUSING-MFG-ASS,Y LH | 1 | $244.95 | |
| 14 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 15 | 1603-258 | INSERT,BLOWMOLDED SKI | 1 | $13.95 | |
| 16 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 17 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 18 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 19 | 8013-232 | SCREW,CAP-HH 3/8-16 X 3.25 GR8 Z&Y | 1 | $1.95 | |
| 20 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 21 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 |
