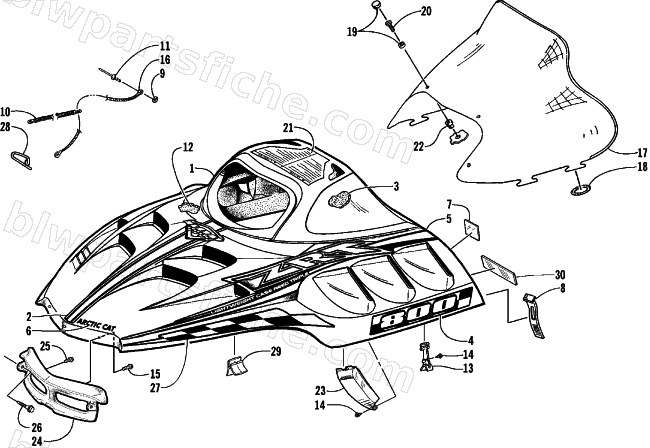

1999 Arctic Cat ZRT 800 — HOOD AND WINDSHIELD ASSEMBLY
1999 ZRT 800
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0718-730 | HOOD, W/O DECALS- 99 ZRT600/800 GRN | 1 | $1,515.95 | |
| 2 | 0718-732 | HOOD W/DECALS-GRN-99 ZRT800 | 1 | $1,755.95 | |
| 2 | 3611-106 | DECAL, HOOD-CENTER (800 ZRT) | 1 | $40.95 | |
| 3 | 0717-112 | FOAM, HOOD-UPR RH | 1 | $16.95 | |
| 3 | 0717-113 | FOAM, HOOD-UPR LH | 1 | $14.95 | |
| 4 | 3611-347 | DECAL, HOOD-"800"(GREEN HOOD) | 1 | $40.95 | |
| 5 | 3611-100 | DECAL, HOOD - UPPER - RH | 1 | $89.95 | |
| 5 | 3611-101 | DECAL, HOOD - UPPER - LH | 1 | $89.95 | |
| 6 | 1611-754 | DECAL,ARCTIC CAT-WHITE | 1 | $19.95 | |
| 7 | 3611-362 | DECAL, CAUTION - FUEL (ENG & FRCH) | 1 | $18.95 | |
| 8 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 9 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 10 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 11 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 12 | 0717-136 | FOAM,HOOD-RH | 1 | $18.95 | |
| 12 | 0717-137 | FOAM,HOOD-LH | 1 | $15.95 | |
| 13 | 1606-321 | GUIDE, HOOD | 1 | $3.44 | |
| 14 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 15 | 0623-790 | SCREW, HI-LO #10 X 1.00 HWH | 1 | $0.85 | |
| 16 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 17 | 1606-323 | WINDSHIELD - FORMED | 1 | $148.95 | |
| 18 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 19 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 20 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 21 | 3611-360 | DECAL, WARNING-GENL & BRAKE | 1 | $162.95 | |
| 22 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 23 | 1606-633 | PLUG,VENT-LH | 1 | $2.95 | |
| 24 | 1606-324 | HINGE, HOOD | 1 | $82.95 | |
| 25 | 0623-791 | SCREW, HI-LO #10 X 0.75 HWH | 1 | $0.55 | |
| 27 | 3611-348 | DECAL, HOOD-LOWER-RH(GREEN HOOD) | 1 | $72.95 | |
| 27 | 3611-349 | DECAL, HOOD-LOWER-LH(GREEN HOOD) | 1 | $72.95 | |
| 28 | 0115-528 | CABLE HOOK | 1 | $13.95 | |
| 29 | 1606-622 | GUIDE, HOOD (FRONT) | 1 | $2.95 |
