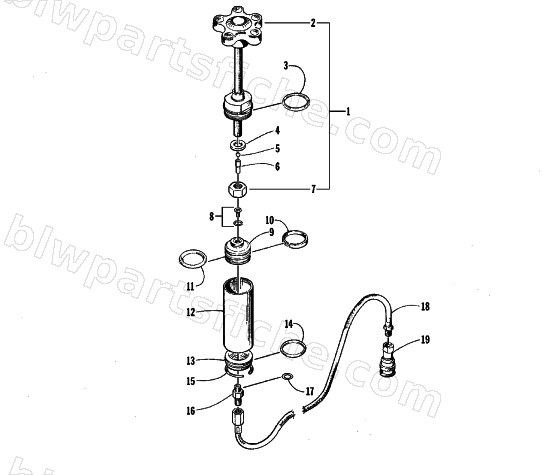

1999 Arctic Cat ZR 600 EFI LE — REMOTE SHOCK LIMITER ASSEMBLY
1999 ZR 600 EFI LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1604-191 | ADJUSTER,FRONT ARM-EASY ADJUST | 1 | $408.95 | |
| 1 | 0704-477 | ENDCAP,AJUSTER-ASSY | 1 | $200.95 | |
| 2 | 1604-252 | KNOB, ADJUSTER(FOX ONLY) | 1 | $71.95 | |
| 3 | 1604-420 | O-RING | 1 | $4.95 | |
| 4 | 1604-422 | WASHER, BACKUP | 1 | $2.95 | |
| 5 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 7 | 1604-253 | NUT, STOP | 1 | $4.95 | |
| 8 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 9 | 0703-722 | PISTON,FLOATING-ASSY (1.459 BORE) | 1 | $117.95 | |
| 10 | 1604-424 | STRAP, PISTON (IFP) - TURCITE | 1 | $13.95 | |
| 11 | 0603-447 | O-RING, .139 CS X 1.171 ID (FOX) | 1 | $4.95 | |
| 12 | 0604-528 | BODY,RESERVIOR-3.8 LG. | 1 | $90.95 | |
| 14 | 1604-436 | O-RING, RES END CAP | 1 | $4.95 | |
| 15 | 0604-521 | RING, RETAINING - RESERVOIR | 1 | $5.78 | |
| 16 | 1604-317 | FITTING, RES. END CAP | 1 | $61.95 | |
| 18 | 1604-256 | HOSE,EXTENSION-TEFLON | 1 | $193.95 | |
| 19 | 1604-537 | HYDRAULIC COUPLING NIPPLE, FEMALE THREAD | 1 | $97.95 |
