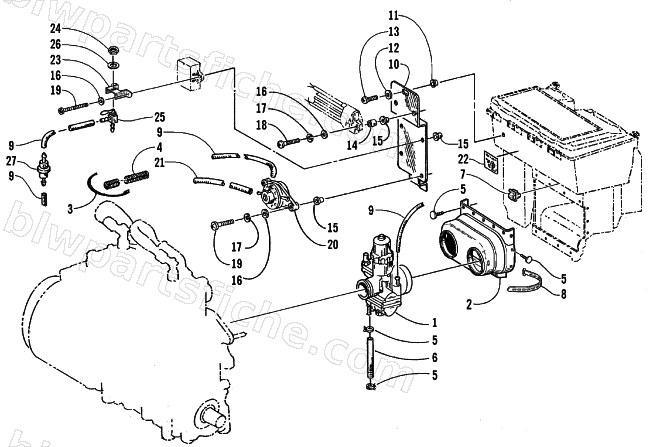

1999 Arctic Cat ZR 500 EFI LE — CARBURETOR AND FUEL PUMP ASSEMBLY
1999 ZR 500 EFI LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-266 | CARB - ASSY 98 ZR 500 | 1 | $652.95 | |
| 2 | 1670-187 | BOOT,AIR SILENCER - CARB | 1 | $145.95 | |
| 3 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 4 | 0716-546 | LOOM,PROTECTIVE-6" (0619-342) | 1 | $1.64 | |
| 5 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 6 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 7 | 0623-403 | CLAMP,PUSH MOUNT | 1 | $0.95 | |
| 8 | 0670-970 | STRAP, CARBURETOR BOOT | 1 | $7.95 | |
| 9 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 9 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 10 | 0770-310 | PLATE,MTG-FAB(ENG COMPONENTS) | 1 | $29.95 | |
| 11 | 0623-627 | INSERT,THREADED-ATS2-420 (.25 X 20).620 | 1 | $3.02 | |
| 12 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 13 | 8017-577 | SCREW,MACH-TSTRH 1/4-20 X 1/2 GR2 Z&Y | 1 | $1.23 | |
| 14 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 15 | 0623-779 | INSERT,ALS4-1032-130 | 1 | $3.16 | |
| 16 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 17 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 19 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 20 | 0670-311 | FUEL PUMP-ASSY.(DF52-152) | 1 | $124.95 | |
| 21 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 22 | 0611-978 | DECAL,FUEL SHUT-OFF VALVE | 1 | $10.95 | |
| 23 | 0770-614 | BRKT,MTG-FUEL SHUT OFF-PTD BLK | 1 | $16.95 | |
| 24 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 | |
| 25 | 0670-144 | VALVE,SHUT OFF-FUEL | 1 | $50.95 | |
| 26 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 27 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 28 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 |
