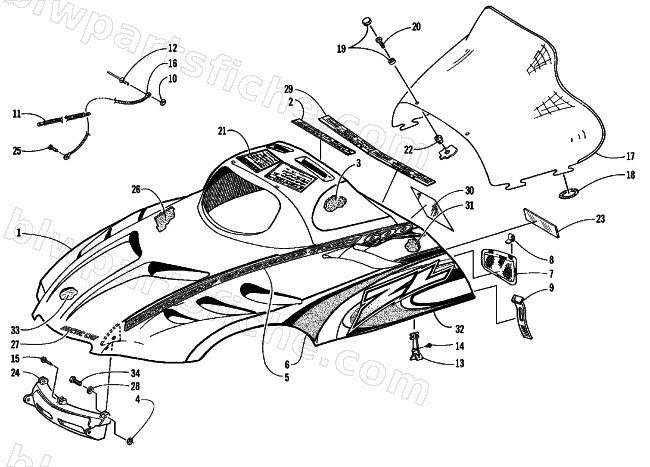

1999 Arctic Cat ZL 600 EFI S/N 9915688 AND UP — HOOD AND WINDSHIELD ASSEMBLY
1999 ZL 600 EFI S/N 9915688 AND UP
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-648 | HOOD, W/O DECALS 98ZR/ZL- EFI, LE BLK | 1 | $1,896.95 | |
| 1 | 0718-691 | HOOD W/DECALS-99 ZL 600 | 1 | $2,007.95 | |
| 1 | 0718-710 | HOOD, W/O DECAL- '99 ZLK FIRECAT RED | 1 | $1,515.95 | |
| 1 | 0718-711 | HOOD W/DECALS-FIRECAT RD-99 ZLH | 1 | $2,035.95 | |
| 1 | 0718-713 | HOOD W/DECALS-ARCTIC ICE-99 ZLJ | 1 | $2,035.95 | |
| 1 | 0718-714 | HOOD, W/O DECAL - '99 ZLH VIPER BLUE | 1 | $1,652.95 | |
| 1 | 0718-715 | HOOD W/DECALS-VIPER BLU-99 ZLH | 1 | $2,035.95 | |
| 2 | 3611-402 | DECAL,CAUTION-FUEL (ENGLISH & FRENCH) | 1 | $17.95 | |
| 3 | 0717-100 | FOAM,HOOD-UPPER RH | 1 | $5.95 | |
| 3 | 0717-101 | FOAM,HOOD-UPPER LH | 1 | $5.95 | |
| 4 | 0623-392 | NUT,FLEX LOCK 10-24 | 1 | $1.50 | |
| 5 | 3611-200 | DECAL,HOOD-600/UPPER-RH | 1 | $91.95 | |
| 5 | 3611-201 | DECAL,HOOD-600/UPPER-LH | 1 | $100.95 | |
| 5 | 3611-334 | DECAL,HOOD-UPPER-RH | 1 | $109.95 | |
| 5 | 3611-335 | DECAL,HOOD-UPPER-LH | 1 | $109.95 | |
| 6 | 3611-204 | DECAL,HOOD-SIDE-RH | 1 | $85.95 | |
| 6 | 3611-205 | DECAL,HOOD-SIDE-LH | 1 | $98.95 | |
| 7 | 1606-214 | SCREEN,HOOD-REAR | 1 | $32.95 | |
| 8 | 0123-596 | CLIP,PUSH | 1 | $1.95 | |
| 9 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 10 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 11 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 12 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 13 | 1606-049 | GUIDE,HOOD | 1 | $3.95 | |
| 14 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 15 | 0623-684 | SCREW,SELF TAP-HWH #12X1-HILO-Z&Y | 1 | $0.95 | |
| 16 | 1606-193 | CABLE,HOOD-41.00" | 1 | $15.11 | |
| 17 | 1606-074 | WINDSHIELD, FORMED | 1 | $113.95 | |
| 18 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 19 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 20 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 21 | 2611-971 | DECAL,WARNING-GENERAL-HOOD | 1 | $134.95 | |
| 22 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 23 | 2611-769 | DECAL,WARNING-SEATING CAP.-GLOSSY | 1 | $16.95 | |
| 24 | 1606-047 | HINGE,HOOD | 1 | $57.95 | |
| 25 | 0145-105 | SCREW M6X14MM | 1 | $0.55 | |
| 26 | 0717-102 | FOAM,HOOD-MIDDLE | 1 | $33.95 | |
| 27 | 3611-186 | DECAL, HOOD-"ARCTIC CAT"-GRN-CURVED | 1 | $21.95 | |
| 28 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 29 | 2611-970 | DECAL,WARNING-BRAKE/ENGINE | 1 | $30.95 | |
| 30 | 2611-972 | DECAL,CAUTION-ENGINE/BATTERY | 1 | $61.95 | |
| 31 | 0717-110 | FOAM,HOOD-REAR RH | 1 | $5.95 | |
| 31 | 0717-111 | FOAM,HOOD-REAR LH | 1 | $5.95 | |
| 32 | 3611-192 | DECAL,HOOD-ZL-RH | 1 | $166.95 | |
| 32 | 3611-193 | DECAL,HOOD-ZL-LH | 1 | $67.95 | |
| 32 | 3611-332 | DECAL,HOOD-ZL-RH | 1 | $136.95 | |
| 32 | 3611-333 | DECAL,HOOD-ZL-LH | 1 | $136.95 | |
| 33 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 34 | 0623-296 | SCREW,MACH-HWH 10-24X1.0-Z&Y | 1 | $0.35 |
