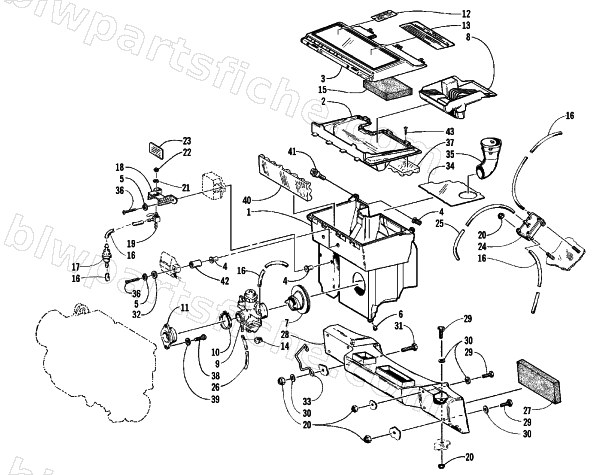

1999 Arctic Cat Z 370 — CARBURETOR, FUEL PUMP, AND AIR SILENCER ASSEMBLY
1999 Z 370
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-337 | AIR SILENCER - ASSY, 99 JAG 340 DLX | 1 | $206.95 | |
| 2 | 0670-920 | COVER, AIR SILENCER | 1 | $29.95 | |
| 3 | 1670-049 | COVER, TOOL TRAY | 1 | $61.95 | |
| 4 | 0623-529 | INSERT,AL SERIES ALS7-1032-225 | 1 | $2.95 | |
| 5 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 6 | 1606-038 | BUMPER, AIR SILENCER | 1 | $1.95 | |
| 7 | 1670-404 | BOOT, AIR SILENCER | 1 | $51.95 | |
| 8 | 0670-826 | TRAY, TOOL | 1 | $30.95 | |
| 9 | 0670-935 | CARB, VM32- 300 (99Z370) | 1 | $507.95 | |
| 10 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 11 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 | |
| 12 | 2611-765 | DECAL, TOOLBOX | 1 | $8.95 | |
| 13 | 3611-320 | DECAL, JET CHART-99 370 Z | 1 | $20.63 | |
| 14 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 15 | 0617-411 | FOAM,TOOL TRAY | 1 | $14.95 | |
| 16 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 16 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 17 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 18 | 0770-614 | BRKT,MTG-FUEL SHUT OFF-PTD BLK | 1 | $16.95 | |
| 19 | 0670-144 | VALVE,SHUT OFF-FUEL | 1 | $50.95 | |
| 20 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 21 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 22 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 | |
| 23 | 0611-978 | DECAL,FUEL SHUT-OFF VALVE | 1 | $10.95 | |
| 24 | 0115-481 | FUEL PUMP (DF44-227) | 1 | $78.95 | |
| 25 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 26 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 26 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 27 | 0617-255 | AIR INTAKE-LH | 1 | $6.95 | |
| 28 | 0670-578 | PLENUM,AIR SILENCER | 1 | $129.95 | |
| 29 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 30 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 31 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 32 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 33 | 0645-269 | BRKT,GUIDE-HARNESS/ROPE | 1 | $13.95 | |
| 34 | 0670-929 | BAFFLE,AIR SILENCER | 1 | $13.95 | |
| 35 | 0670-617 | FUNNEL, AIR SILENCER | 1 | $53.95 | |
| 37 | 0617-251 | FOAM,AIR SILENCER-TOP LID | 1 | $8.95 | |
| 38 | 0623-116 | BOLT,SOCKET LOW HEAD M8 X 1.25 X 25 Y&Z | 1 | $4.95 | |
| 39 | 0623-041 | WASHER,SPIRNG-.331IDX.591ODX.030THK | 1 | $0.25 | |
| 40 | 0617-254 | FOAM,AIR SILENCER-FRONT | 1 | $5.95 | |
| 41 | 0623-780 | SCREW,HEX SHOULDER - 10/32 | 1 | $16.49 | |
| 42 | 0670-210 | SPACER, CLAMP- 9mm | 1 | $4.40 | |
| 43 | 0623-770 | SCREW,SELF TAP-PHFH #10-16X.75 TYP B Z&Y | 1 | $1.37 |
