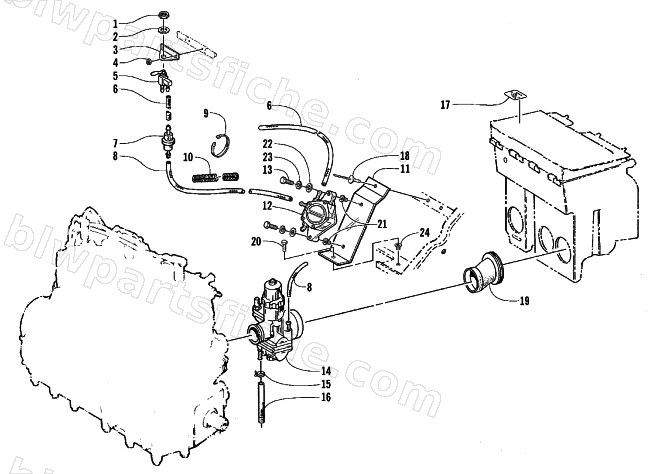

1999 Arctic Cat TRIPLE TOURING — CARBURETOR AND FUEL PUMP ASSEMBLY
1999 TRIPLE TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 | |
| 2 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 3 | 0770-739 | BRKT,MTG-PTD BLK | 1 | $4.29 | |
| 4 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 0670-945 | VALVE, SHUT-OFF (REVERSE FLOW) | 1 | $48.95 | |
| 6 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 7 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 8 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 8 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 9 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 10 | 0716-546 | LOOM,PROTECTIVE-6" (0619-342) | 1 | $1.64 | |
| 11 | 0770-405 | BRACKET, FUEL PUMP MTG-W/INSERTS-ZRT | 1 | $61.95 | |
| 12 | 0670-952 | PUMP, FUEL ('99 ZRT 600) | 1 | $133.95 | |
| 13 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 14 | 0770-380 | CARB - ASSY, 99 TRPL 600 | 1 | $539.95 | |
| 15 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 16 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 17 | 0611-978 | DECAL,FUEL SHUT-OFF VALVE | 1 | $10.95 | |
| 18 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 19 | 1670-353 | BOOT, AIR SILENCER | 1 | $47.95 | |
| 20 | 8002-039 | SCREW,CAP-HH 1/4-20 X.625 G5 Z&Y | 1 | $0.40 | |
| 21 | 0623-779 | INSERT,ALS4-1032-130 | 1 | $3.16 | |
| 22 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 23 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 24 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 |
