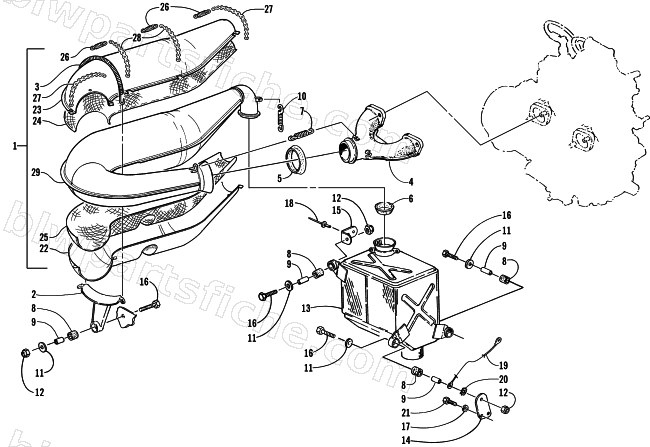

1999 Arctic Cat POWDER SPECIAL 700 — EXHAUST ASSEMBLY
1999 POWDER SPECIAL 700
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0712-367 | CHAMBER,EXP- FAB (99 700) | 1 | $759.95 | |
| 2 | 0712-366 | RACKET,MTG-EXP CHAMBER-WELDT | 1 | $21.95 | |
| 3 | 0612-027 | SPRING EXTENSION | 1 | $27.95 | |
| 5 | 1612-014 | GASKET,EXHAUST HEADPIPE | 1 | $37.95 | |
| 6 | 0612-993 | GASKET,EXHAUST - TAIL PIPE (99-700) | 1 | $29.95 | |
| 7 | 2612-399 | SPRING,EXTENSION | 1 | $3.71 | |
| 8 | 0612-107 | BUSHING,RESONATOR MTG | 1 | $12.95 | |
| 10 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 11 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 12 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 13 | 0712-355 | RESONATOR,EXHAUST-WELDT (99 ZR 700) | 1 | $395.95 | |
| 14 | 0712-883 | BRKT,MTG-RESONATOR-FRT-PTD BLK | 1 | $48.95 | |
| 15 | 0612-790 | BRKT,MTG-RESONATOR | 1 | $6.95 | |
| 16 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 17 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 18 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 19 | 0686-126 | HARNESS,ENGINE-GROUND | 1 | $12.35 | |
| 20 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 21 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 22 | 0612-965 | COVER,EXP CHAMBER LOWER | 1 | $201.95 | |
| 23 | 0612-964 | COVER,EXP CHAMBER UPPER | 1 | $162.95 | |
| 24 | 1612-008 | WRAP,EXP - CHAMBER (99/700) | 1 | $41.95 | |
| 25 | 1612-104 | WRAP, EXP CHAMBER LOWER 99/700 | 1 | $31.95 | |
| 26 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 27 | 0624-493 | TIE, PERFORATED BAND-IT19" | 1 | $18.95 | |
| 28 | 0624-494 | TIE,PERFORATED BAND-IT 15" | 1 | $8.95 |
