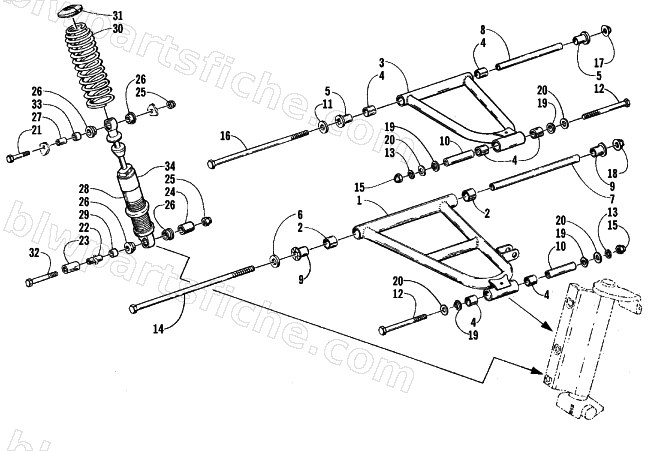

1999 Arctic Cat POWDER SPECIAL 700 LE — FRONT SUSPENSION AND SHOCK ABSORBER
1999 POWDER SPECIAL 700 LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-488 | ARM, FRONT - LOWER - FABR - RH | 1 | $204.95 | |
| 2 | 0703-489 | ARM, FRONT - LOWER - FABR - LH | 1 | $226.95 | |
| 2 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 3 | 0703-486 | ARM, FRONT - UPPER - FABR | 1 | $187.95 | |
| 4 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 5 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 6 | 0623-663 | WASHER,FLAT 1.00X.453X.164 Z&Y | 1 | $3.57 | |
| 7 | 0603-693 | TUBE,AXLE-LOWER PIVOT | 1 | $22.01 | |
| 8 | 0603-692 | TUBE,AXLE-UPPER ARM-PIVOT | 1 | $17.87 | |
| 9 | 0603-524 | AXLE,SERRATED-LOWER ARM PIVOT | 1 | $6.47 | |
| 10 | 0603-830 | AXLE,SPINDLE MTG.-STEEL (2.688") | 1 | $39.95 | |
| 11 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 12 | 0623-657 | SCREW,CAP HH 3/8-16 X 4.25 GR8 Z&Y | 1 | $1.78 | |
| 13 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 15 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 16 | 0623-509 | SCREW,CAP-HH 3/8-16X9.455 GD 8 | 1 | $32.95 | |
| 17 | 0623-661 | NUT,CROWNLOCK FLANGE 3/8-16 UNC Z&Y | 1 | $1.23 | |
| 18 | 0623-660 | NUT,CROWNLOCK FLANGE 7/16-14 UNC Z&Y | 1 | $1.95 | |
| 19 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 20 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 22 | 1604-184 | SLEEVE, SHOCK ABSORBER | 1 | $42.95 | |
| 23 | 0603-854 | SPACER, SHOCK MTG - FRT | 1 | $13.73 | |
| 24 | 0603-855 | SPACER, SHOCK MTG - REAR | 1 | $3.99 | |
| 25 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 26 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 27 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 28 | 1603-218 | SHOCK,SKI-FOX (FOR 0639-901) | 1 | $529.95 | |
| 29 | 1603-575 | SLEEVE,EYELET.790X.812X.635" POWDER MET | 1 | $22.01 | |
| 30 | 0703-599 | SPRING,COMPRESSION-SKI (GREEN) 1603-197 | 1 | $104.95 | |
| 31 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 32 | 8002-234 | SCREW,CAP-HH 3/8-16 X4.00 G5 Z&Y | 1 | $1.50 | |
| 33 | 0603-957 | SLEEVE,EYELET-OUTER (.790") | 1 | $5.95 |
