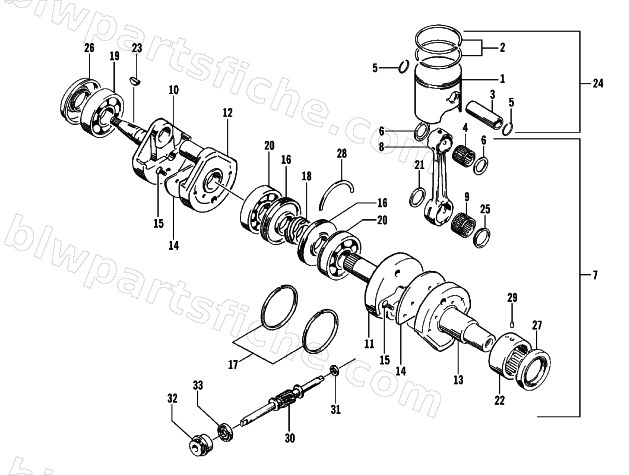

1999 Arctic Cat POWDER SPECIAL 600 EFI II LE — PISTON AND CRANKSHAFT
1999 POWDER SPECIAL 600 EFI II LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-445 | PISTON ASSY, 600 X2 | 1 | $294.95 | |
| 2 | 3003-714 | RING SET,600-650L/C | 1 | $105.95 | |
| 3 | 3005-111 | PIN, PISTON | 1 | $34.95 | |
| 4 | 3003-433 | BEARING,PISTON PIN,ROLLER,M20X26X24 | 1 | $42.95 | |
| 5 | 3003-439 | CIRCLIP,PISTON PIN,M20 | 1 | $3.16 | |
| 6 | 3005-209 | WASHER,20MM | 1 | $13.73 | |
| 7 | 3005-414 | CRANKSHAFT ASSY | 1 | $2,661.95 | |
| 8 | 3005-112 | ROD, CONNECTING | 1 | $283.95 | |
| 9 | 3008-423 | BEARING,M26 | 1 | $129.95 | |
| 10 | 3005-416 | CRANKSHAFT, RH | 1 | $496.95 | |
| 11 | 3005-421 | CRANKSHAFT, MIDDLE | 1 | $501.95 | |
| 12 | 3005-215 | WHEEL, CRANKSHAFT | 1 | $536.95 | |
| 13 | 3005-217 | CRANKSHAFT, LH | 1 | $426.95 | |
| 14 | 3004-961 | BALANCER, CRANKSHAFT | 1 | $38.95 | |
| 15 | 3007-440 | SCREW | 1 | $2.06 | |
| 16 | 3004-799 | RACE MDL SEAL | 1 | $82.95 | |
| 18 | 3005-362 | GEAR, OIL PUMP DRIVE | 1 | $193.95 | |
| 19 | 3005-412 | BEARING,ROLLER,M30 | 1 | $456.95 | |
| 20 | 3003-164 | BEARING, CRANKSHAFT,BALL,M30X72X16 | 1 | $108.95 | |
| 21 | 3003-782 | WASHER,M26 X 31 X 1.5 | 1 | $5.09 | |
| 22 | 3003-805 | BEARING,CRANK-LH,ROLLER,M40X64X30 | 1 | $244.95 | |
| 23 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 | |
| 25 | 3003-933 | WASHER,CRANK PIN | 1 | $14.95 | |
| 26 | 3005-188 | SEAL,CRANKSHAFT-RH,M30 | 1 | $77.95 | |
| 27 | 3003-759 | R/B 0930-051 | 1 | $54.95 | |
| 28 | 3003-216 | C-RING, CRANKSHAFT,M72 | 1 | $6.06 | |
| 29 | 3003-658 | PIN,ALIGNMENT | 1 | $3.16 | |
| 30 | 3005-319 | GEAR, OIL PUMP DRIVEN | 1 | $127.95 | |
| 31 | 3005-049 | SHIM,10MM | 1 | $3.57 | |
| 32 | 3005-909 | SEAL, MECHANICAL WATER PUMP | 1 | $66.95 | |
| 33 | 3007-431 | OIL SEAL-10X22X6 | 1 | $16.49 |
