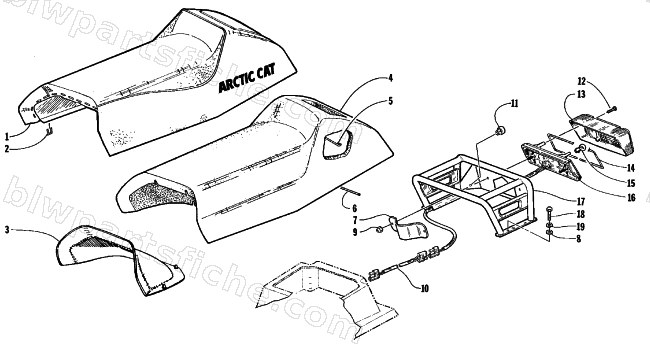

1999 Arctic Cat POWDER SPECIAL 500 EFI — SEAT AND TAILLIGHT ASSEMBLY
1999 POWDER SPECIAL 500 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0718-705 | SEAT - ASSY, '99 P/S 500 EFI | 1 | $976.95 | |
| 1 | 0716-901 | COVER, SEAT W/A.C. 99 ZL600 EFI | 1 | $415.95 | |
| 2 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 3 | 1606-126 | INSERT,SEAT FOAM | 1 | $90.95 | |
| 4 | 0716-536 | FOAM.SEAT CUSHION | 1 | $189.95 | |
| 5 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 7 | 1606-429 | PLATE,PROTECTOR-TAILLIGHT-PTD BLK | 1 | $17.95 | |
| 8 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 9 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 10 | 0686-054 | HARNESS,EXTENSION-MC TAILLIGHT | 1 | $43.95 | |
| 11 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 12 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 13 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 14 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 15 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 16 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 18 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 19 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 |
