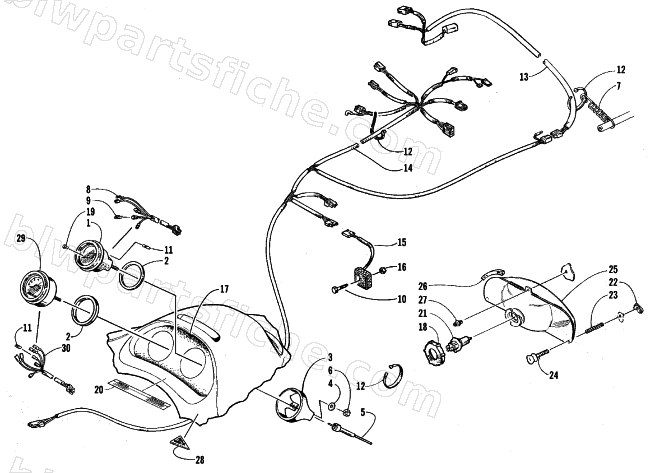

1999 Arctic Cat PANTHER 550 — INSTRUMENTS AND WIRING ASSEMBLIES
1999 PANTHER 550
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0620-238 | SPEEDOMETER, 100MPH-W/O AC LOGO | 1 | $237.95 | |
| 2 | 0620-135 | RING, RUBBER CUSHION-TACH/SPEEDO | 1 | $3.57 | |
| 3 | 0620-134 | BACKCLAMP, TACH/SPEEDO | 1 | $17.95 | |
| 4 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 5 | 0620-269 | CABLE, SPEEDOMETER-96" | 1 | $68.95 | |
| 6 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 7 | 0623-199 | SPRING,EXTENSION | 1 | $6.47 | |
| 8 | 0620-151 | HARNESS,SPEEDOMETER BULB | 1 | $117.95 | |
| 9 | 0620-149 | BULB,T-10 WEDGE BASE-12V 1.7W | 1 | $4.95 | |
| 10 | 8002-047 | SCREW,CAP-HH 1/4-20 X2.00 G5 Z&Y | 1 | $0.95 | |
| 11 | 0230-020 | BULB, T-10 WEDGE BASE-12 V 3.4W | 1 | $3.16 | |
| 12 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 13 | 0686-513 | HARNESS, HOOD-TACH/SPEEDO | 1 | $97.95 | |
| 14 | 0686-438 | HARNESS,MAIN | 1 | $285.95 | |
| 15 | 0630-105 | REGULATOR, VOLTAGE-ES 3 WIRE | 1 | $71.95 | |
| 16 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 17 | 3611-099 | DECAL,HOOD-CONSOLE | 1 | $47.95 | |
| 18 | 0609-296 | COLLAR, LOCKING-HEADLIGHT (THIN) | 1 | $13.73 | |
| 19 | 0620-073 | KNOB,TRIPMETER | 1 | $15.11 | |
| 20 | 2611-973 | DECAL,CAUTION-FUEL-ENG/FR | 1 | $160.95 | |
| 21 | 0109-724 | R/B 0609-956 | 1 | $29.95 | |
| 22 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 23 | 0623-466 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $5.78 | |
| 24 | 0623-695 | SCREW,THUMB 1/4-20 UNC X 3.75 | 1 | $3.16 | |
| 25 | 0609-245 | LENS/REFLECTOR-HEADLIGHT(REF0609-244) | 1 | $158.95 | |
| 26 | 0617-173 | SEAL,HEADLIGHT .50 X .75 X 30 | 1 | $3.95 | |
| 27 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 28 | 3611-003 | DECAL,DOME-"MADE IN U.S.A." | 1 | $7.95 | |
| 29 | 0620-236 | TACH, ELEC-4P W/O AC LOGO | 1 | $347.95 | |
| 30 | 0620-215 | HARNESS,TACH-W/O ICON | 1 | $117.95 | |
| 31 | 0686-107 | HARNESS,HANDWARM-PSGR | 1 | $30.95 |
