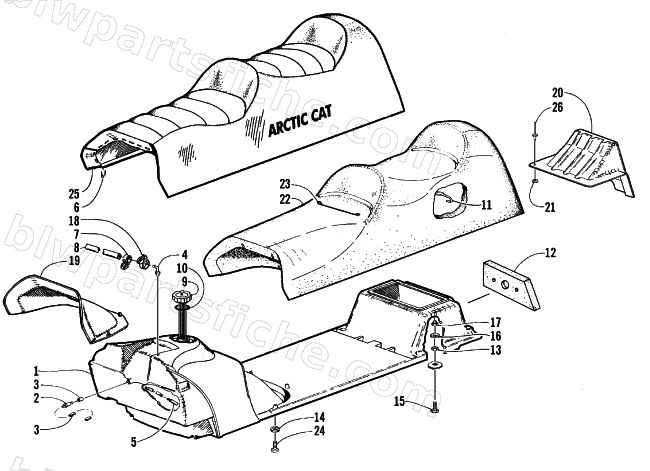

1999 Arctic Cat PANTHER 550 — GAS TANK AND SEAT ASSEMBLY
1999 PANTHER 550
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-362 | TANK, GAS - ASSY 99 TOUR | 1 | $395.95 | |
| 2 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 3 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 3 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 4 | 0670-572 | VENT,GAS TANK | 1 | $3.95 | |
| 5 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 6 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 7 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 8 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 9 | 0670-658 | CAP,GAS-W/GAUGE | 1 | $45.95 | |
| 10 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 12 | 0617-098 | FOAM, SEATBASE-TAIL LIGHT | 1 | $6.95 | |
| 13 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 15 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 16 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 18 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 19 | 1606-126 | INSERT,SEAT FOAM | 1 | $90.95 | |
| 20 | 1606-191 | EXTENSION,TOOLBOX | 1 | $104.95 | |
| 21 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 22 | 0716-867 | FOAM,SEAT CUSHION-2 UP | 1 | $269.95 | |
| 23 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 24 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 25 | 0716-928 | COVER, SEAT - W/DECAL 99 PAN 340 | 1 | $548.95 | |
| 26 | 8061-428 | RIVET,BLIND-LF AA56 BLACK | 1 | $1.64 |
