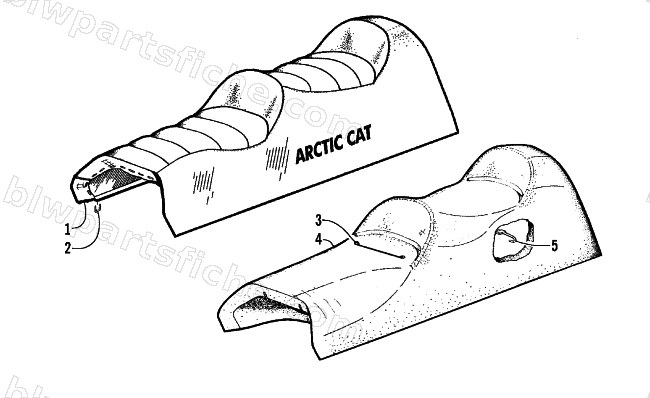

1999 Arctic Cat PANTERA 580 EFI — SEAT ASSEMBLY
1999 PANTERA 580 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0718-750 | SEAT - ASSY, 99PTA 580 | 1 | $875.95 | |
| 1 | 0716-871 | COVER,SEAT-2 UP W/ A.C. | 1 | $462.29 | |
| 2 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 3 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 4 | 0716-867 | FOAM,SEAT CUSHION-2 UP | 1 | $269.95 |
