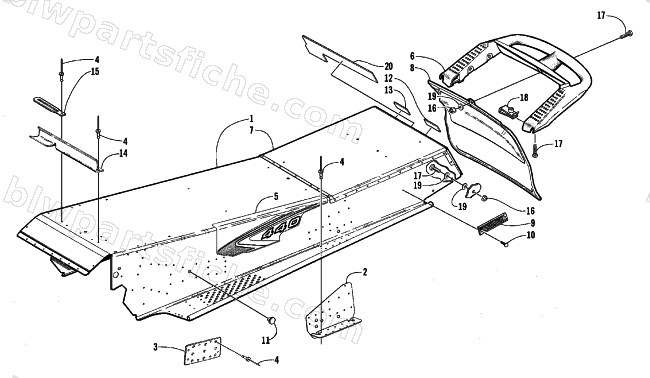

1999 Arctic Cat JAG 440 — TUNNEL AND REAR BUMPER
1999 JAG 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-675 | TUNNEL - ASSY 99 JAG 340 DLX | 1 | $766.95 | |
| 2 | 2706-780 | BRKT,SUSP. RH-PTD BLK | 1 | $50.95 | |
| 2 | 2706-781 | BRKT,SUSP. LH-PTD BLK | 1 | $45.95 | |
| 3 | 2706-111 | PLATE,BODY-REINFORCEMENT-PTD BLK | 1 | $14.95 | |
| 4 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 5 | 3611-226 | DECAL,TUNNEL - RH | 1 | $47.95 | |
| 5 | 3611-227 | DECAL,TUNNEL - LH | 1 | $47.95 | |
| 6 | 1606-200 | BUMPER,REAR-Z,ZL,ZR | 1 | $142.95 | |
| 7 | 1606-497 | PLATE,END - REAR TUNNEL | 1 | $197.95 | |
| 8 | 1606-202 | SNOWFLAP-BLK (99 PROD) | 1 | $96.95 | |
| 9 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 10 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 11 | 0606-983 | PLUG,BODY 3/8-BLACK | 1 | $1.92 | |
| 12 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 13 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 14 | 0607-488 | BRCKT, MAIN HARNESS PROTECTOR | 1 | $16.49 | |
| 15 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 16 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 17 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 18 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 19 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 20 | 2611-940 | DECAL,FASTRACK/ETT | 1 | $81.95 |
