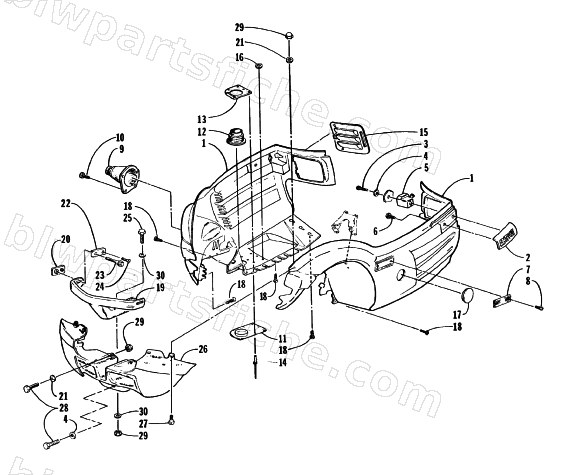

1999 Arctic Cat JAG 340 DLX — BELLY PAN AND FRONT BUMPER ASSEMBLY
1999 JAG 340 DLX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1606-172 | BELLYPAN-ROUTED-RH | 1 | $268.95 | |
| 1 | 1606-179 | BELLYPAN-ROUTED-LH | 1 | $365.95 | |
| 2 | 1606-065 | BUMPER, BELLYPAN-LH | 1 | $29.95 | |
| 3 | 0623-647 | SCREW,SELF TAP-HWH 1/4X2.0 A Z&Y | 1 | $0.95 | |
| 4 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 5 | 1606-094 | SUPPORT, BELLYPAN-RH | 1 | $23.39 | |
| 5 | 1606-095 | SUPPORT, BELLYPAN-LH | 1 | $26.95 | |
| 6 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 7 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 8 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 9 | 0605-332 | BOOT,STEERING-DRAG LINK-RH | 1 | $40.95 | |
| 9 | 0605-333 | BOOT,STEERING-DRAG LINK-LH | 1 | $28.95 | |
| 10 | 0623-564 | SCREW,TAPPING #10 X 1.00 HWH | 1 | $3.57 | |
| 11 | 0612-545 | RING,EXHAUST OUTLET-LOWER | 1 | $8.95 | |
| 12 | 0612-475 | BOOT,EXHAUST | 1 | $54.95 | |
| 13 | 0612-546 | RING,EXHAUST OUTLET-UPPER | 1 | $10.95 | |
| 14 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 15 | 1606-044 | LOUVER, AIR INTAKE-RH-BLK | 1 | $46.95 | |
| 15 | 1606-045 | LOUVER, AIR INTAKE-LH-BLK | 1 | $46.95 | |
| 16 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 17 | 0623-600 | PLUG,BELLYPAN-2.00 | 1 | $4.82 | |
| 18 | 0623-700 | SCREW,SELF TAP-TSTRH #10-12X3/4 TP A Z&Y | 1 | $10.95 | |
| 19 | 0616-999 | BUMPER, FRONT | 1 | $110.95 | |
| 21 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 22 | 0607-524 | PLATE,BACKING-HOOD HINGE | 1 | $19.25 | |
| 23 | 0623-690 | SCREW,HDHS-1/4-20X1.240 Z&Y | 1 | $24.77 | |
| 24 | 0623-689 | SCREW,MACH-HSFH 10-24X1.25 Z&Y | 1 | $2.06 | |
| 25 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 26 | 0616-998 | NOSEPIECE | 1 | $148.95 | |
| 27 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 28 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 29 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 30 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 |
