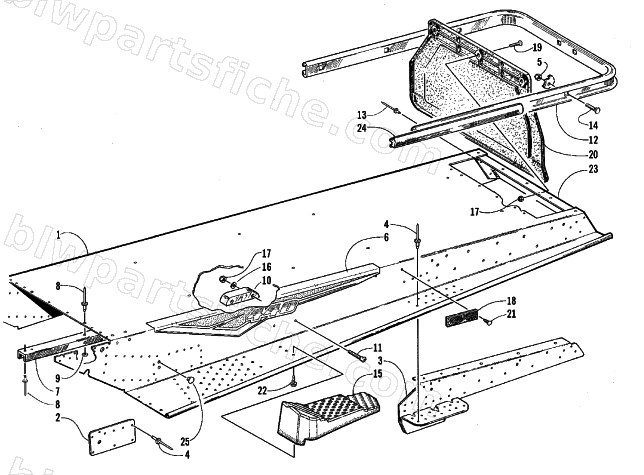

1999 Arctic Cat BEARCAT 440 II - 156 IN. — TUNNEL AND REAR BUMPER
1999 BEARCAT 440 II - 156 IN.
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-590 | TUNNEL-ASSY 98 BRC 440 | 1 | $698.95 | |
| 2 | 2706-277 | PLATE,BODY REINF-PTD BLK | 1 | $27.95 | |
| 3 | 0716-123 | BRKT,REAR-SUSP-WELD'T LH | 1 | $46.95 | |
| 3 | 0716-124 | BRKT,REAR-SUSP-WELD'T RH | 1 | $46.95 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 5 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 6 | 3611-264 | DECAL,TUNNEL R.H. | 1 | $57.95 | |
| 6 | 3611-265 | DECAL,TUNNEL L.H. | 1 | $57.95 | |
| 7 | 0716-103 | WEARSTRIP,TUNNEL | 1 | $56.95 | |
| 8 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 9 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 10 | 0604-497 | GUIDE,TRACK | 1 | $20.95 | |
| 11 | 0623-268 | SCREW,FLAT HEAD-1/4-20 X 1.50 | 1 | $0.35 | |
| 12 | 0616-502 | BUMPER,FORMED REAR | 1 | $223.95 | |
| 13 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 14 | 8011-040 | BOLT,CRG 1/4-20X.75 GR1 Z&Y | 1 | $0.12 | |
| 15 | 1606-478 | FOOTREST-RH | 1 | $30.95 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 19 | 8017-582 | R/B 1623-689 | 1 | $0.65 | |
| 20 | 0616-613 | SNOWFLAP,REV- | 1 | $68.95 | |
| 21 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 23 | 0616-583 | PLATE,END-TUNNEL | 1 | $22.01 | |
| 24 | 0616-504 | INSERT,BUMPER CUT TO LENGTH REAR | 1 | $41.95 | |
| 25 | 0606-983 | PLUG,BODY 3/8-BLACK | 1 | $1.92 |
