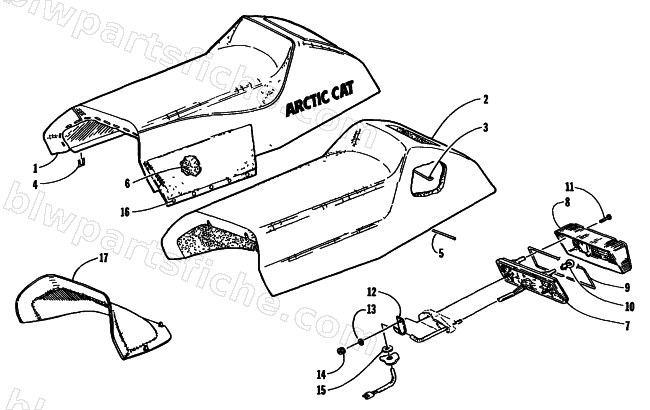

1998 Arctic Cat ZR 600 EFI LE () — SEAT AND TAILLIGHT ASSEMBLY
1998 ZR 600 EFI LE ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0718-633 | SEAT-ASSY 98 ZR 600 EFI | 1 | $728.95 | |
| 0 | 0718-651 | SEAT-ASSY, 98ZR600/EFI/LE-BLK | 1 | $728.95 | |
| 1 | 0716-730 | COVER, SEAT-ASSY | 1 | $450.95 | |
| 1 | 0716-866 | COVER, SEAT W/DECAL 98ZR/EFI/LE-BLK | 1 | $522.95 | |
| 2 | 0716-536 | FOAM.SEAT CUSHION | 1 | $189.95 | |
| 3 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 4 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 6 | 0617-274 | FOAM,PAD-TUNNEL ('98 ZR) | 1 | $11.95 | |
| 7 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 8 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 9 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 10 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 11 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 12 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 13 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 14 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 15 | 0617-136 | SEAL,FOAM-SEAT BASE | 1 | $2.06 | |
| 16 | 0116-378 | SNAP,ASSY BLACK-CUSHION | 1 | $1.23 | |
| 17 | 1606-126 | INSERT,SEAT FOAM | 1 | $90.95 |
