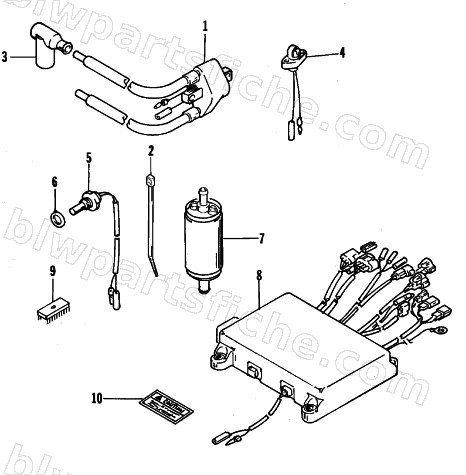

1998 Arctic Cat ZR 600 EFI LE () — ELECTRICAL
1998 ZR 600 EFI LE ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-185 | COIL SET, IGNITION | 1 | $305.95 | |
| 2 | 3005-237 | CLAMP,M19 | 1 | $20.63 | |
| 3 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 4 | 3005-460 | SENSOR, AIR TEMP | 1 | $150.95 | |
| 5 | 3006-515 | SENSOR ASSY,COOLING WATER | 1 | $172.95 | |
| 7 | 3005-268 | PUMP ASSY,FUEL(KEFI) | 1 | $721.95 | |
| 8 | 3005-195 | ECU, 600 KEFI-CIRCLE | 1 | $1,746.95 | |
| 8 | 3005-196 | ECU, 600 KEFI-SQUARE | 1 | $2,640.95 | |
| 8 | 3005-197 | ECU, 600 KEFI-TRIANGLE | 1 | $2,356.95 | |
| 9 | 3005-463 | EPROM, 600 KEFI GAS - CIRCLE ('99) | 1 | $140.95 | |
| 9 | 3005-464 | EPROM, 600 KEFI GAS - SQUARE ('99) | 1 | $148.95 | |
| 9 | 3005-465 | EPROM, 600 KEFI GAS - TRIANGLE ('99) | 1 | $148.95 | |
| 9 | 3005-477 | EPROM,600 KEFI ETHANOL-CIRCLE ('98) | 1 | $488.95 | |
| 9 | 3005-478 | EPROM,600 KEFI ETHANOL-SQUARE ('98) | 1 | $488.95 | |
| 9 | 3005-479 | EPROM,600 KEFI ETHANOL-TRIANGLE ('98) | 1 | $382.95 | |
| 10 | 2611-755 | DECAL,CAUTION-HOT SURFACE | 1 | $17.95 |
