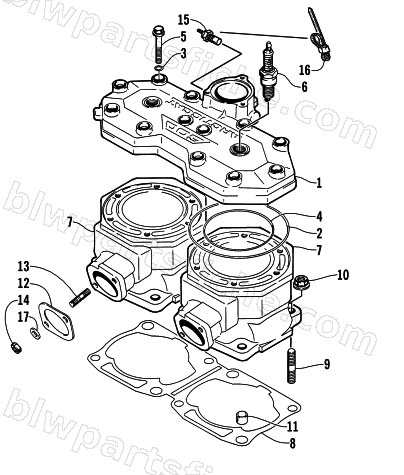

1998 Arctic Cat ZR 600 EFI LE () — CYLINDER AND HEAD ASSEMBLY
1998 ZR 600 EFI LE ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-263 | HEAD,CYLINDER(600 X 2 EFI) | 1 | $647.95 | |
| 2 | 3003-765 | O RING,HEAD-OUTER | 1 | $22.01 | |
| 3 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 4 | 3004-080 | O-RING,HEAD-INNER | 1 | $32.95 | |
| 5 | 3007-460 | BOLT | 1 | $3.85 | |
| 6 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 7 | 3005-431 | CYLINDER (600 L/CX2) | 1 | $479.95 | |
| 8 | 3005-654 | GASKET,CYLINDER | 1 | $49.95 | |
| 9 | 3005-207 | STUD BOLT,10MM | 1 | $12.35 | |
| 10 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 11 | 3004-975 | PIN, CYLINDER KNOCK(ALIGMENT) | 1 | $2.61 | |
| 12 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 13 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 14 | 3007-416 | NUT | 1 | $2.75 | |
| 15 | 0720-011 | SENSOR, HEAT- L/C | 1 | $60.95 | |
| 16 | 0623-285 | CABLE TIE,DOUBLE LOOP | 1 | $3.85 | |
| 17 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 |
