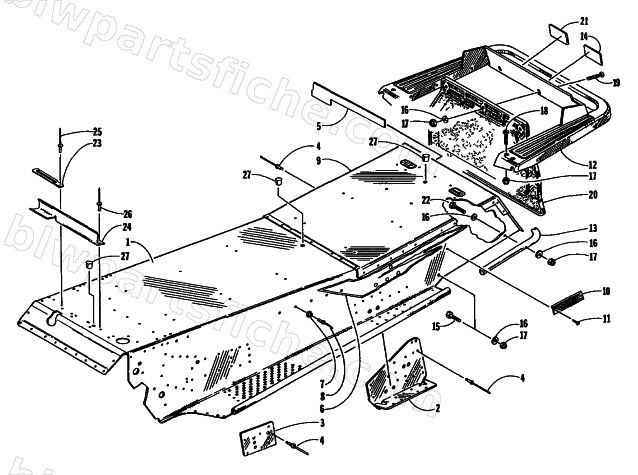

1998 Arctic Cat ZR 600 EFI LE XC — TUNNEL AND REAR BUMPER
1998 ZR 600 EFI LE XC
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-573 | TUNNEL - ASSY | 1 | $1,223.95 | |
| 2 | 2706-780 | BRKT,SUSP. RH-PTD BLK | 1 | $50.95 | |
| 2 | 2706-781 | BRKT,SUSP. LH-PTD BLK | 1 | $45.95 | |
| 3 | 2706-116 | PLATE, BODY-REINFORCEMENT-PTD BLK | 1 | $6.75 | |
| 4 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 5 | 2611-940 | DECAL,FASTRACK/ETT | 1 | $81.95 | |
| 6 | 2611-776 | DECAL,TUNNEL-RH | 1 | $45.95 | |
| 6 | 2611-777 | DECAL,TUNNEL-LH | 1 | $42.95 | |
| 7 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 8 | 8060-286 | RIVET,BLIND-DH SS44 ZINC | 1 | $0.68 | |
| 9 | 0616-728 | PLATE,END-REAR TUNNEL | 1 | $256.95 | |
| 10 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 11 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 12 | 0616-730 | BUMPER,REAR-'ETT' | 1 | $172.95 | |
| 13 | 2706-600 | INSERT,BUMPER-PTD BLK | 1 | $64.95 | |
| 14 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 15 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 8019-585 | SCREW,MACH-TSPNH 1/4-20 X 1 1/2 GR2 Z&Y | 1 | $0.55 | |
| 19 | 8017-582 | R/B 1623-689 | 1 | $0.65 | |
| 20 | 0616-612 | SNOWFLAP,30 DEG.FLIP UP WHITE | 1 | $54.95 | |
| 20 | 0616-613 | SNOWFLAP,REV- | 1 | $68.95 | |
| 21 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 22 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 23 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 24 | 0607-488 | BRCKT, MAIN HARNESS PROTECTOR | 1 | $16.49 | |
| 25 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 26 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 27 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 |
