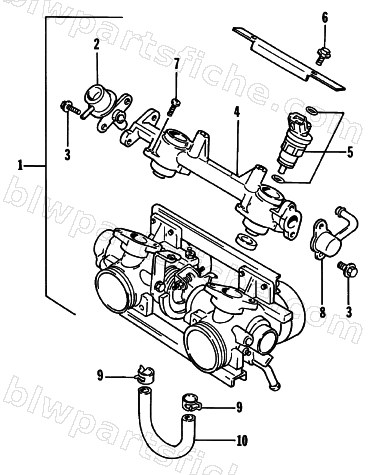

1998 Arctic Cat ZR 600 EFI LE XC — THROTTLE BODY ASSEMBLY
1998 ZR 600 EFI LE XC
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-265 | BODY ASSY,THROTTLE | 1 | $3,386.95 | |
| 1 | 3005-608 | BODY ASSY, THROTTLE (SQUARE) | 1 | $3,256.95 | |
| 1 | 3005-267 | BODY ASSY,THROTTLE | 1 | $2,671.95 | |
| 2 | 3005-074 | REGULATOR COMP, FUEL PRESSURE | 1 | $451.95 | |
| 3 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 4 | 3005-269 | PIPE,DELIVERY | 1 | $813.95 | |
| 5 | 3005-075 | INJECTOR ASSY, FUEL (CIRCLE) | 1 | $647.95 | |
| 5 | 3005-076 | INJECTOR ASSY, FUEL (SQUARE) | 1 | $666.95 | |
| 5 | 3005-077 | INJECTOR ASSY, FUEL (TRIANGLE) | 1 | $666.95 | |
| 7 | 3005-320 | SCREW,M5X16 | 1 | $1.95 | |
| 8 | 3005-079 | PIPE COMP, FUEL INLET | 1 | $498.95 | |
| 9 | 3004-193 | CLAMP, HOSE-EFI THROTTLE BODY,M12 | 1 | $4.95 | |
| 10 | 3005-103 | HOSE, WATER | 1 | $68.95 |
