1998 Arctic Cat ZR 440 — MAGNETO
1998 ZR 440
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

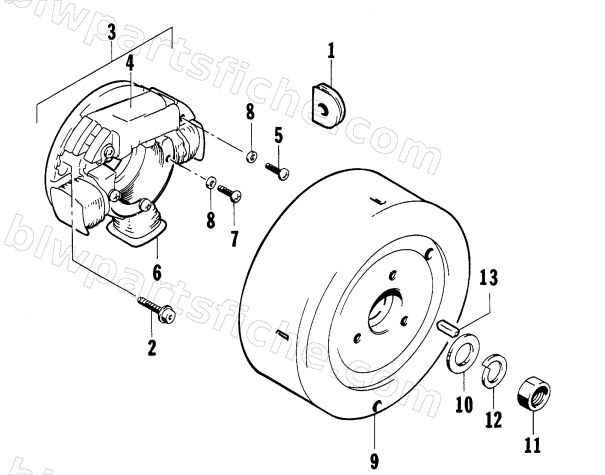

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3008-034 | GROMMET, LEAD WIRE,M10 | 1 | $17.87 | |
| 2 | 3004-893 | BOLT, 6 X 25 | 1 | $16.49 | |
| 3 | 3005-262 | STATOR ASSY | 1 | $933.95 | |
| 4 | 3003-013 | COIL ASSEMBLY, LIGHTING | 1 | $148.95 | |
| 5 | 3007-848 | SCREW,5X30 | 1 | $2.75 | |
| 6 | 3004-834 | COIL, PRIMARY FROM(3003-681 ) | 1 | $266.95 | |
| 7 | 3007-843 | SCREW,M5X35 | 1 | $2.75 | |
| 8 | 3004-972 | WASHER, LOCK,5MM | 1 | $1.95 | |
| 9 | 3004-973 | FLYWHEEL | 1 | $927.95 | |
| 10 | 3005-175 | WASHER, 14.5X28X5 | 1 | $3.16 | |
| 11 | 3007-556 | NUT | 1 | $3.95 | |
| 12 | 3007-427 | LOCK WASHER | 1 | $4.40 | |
| 13 | 3004-540 | KEY,WOODRUFF,M4 | 1 | $6.34 |
