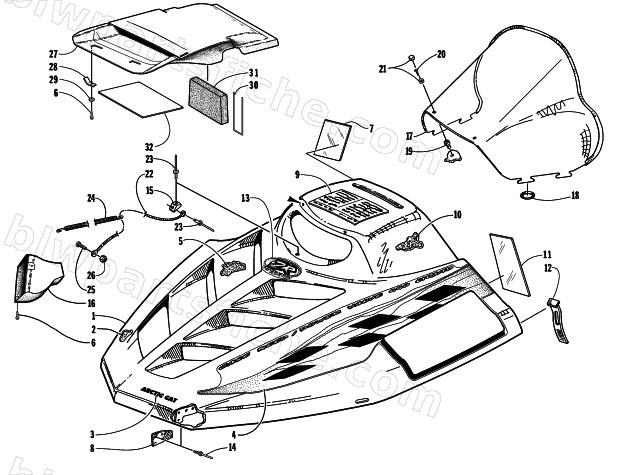

1998 Arctic Cat ZR 440 SNO-PRO — HOOD AND WINDSHIELD ASSEMBLY
1998 ZR 440 SNO-PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-764 | HOOD, W/O DECAL - 99 ZR SNO PRO | 1 | $1,515.95 | |
| 1 | 0718-647 | HOOD W/DECALS-98 ZR440 SNO PRO | 1 | $1,739.95 | |
| 2 | 0717-058 | FOAM,HOOD-RH | 1 | $32.95 | |
| 2 | 0717-059 | FOAM,HOOD-LH | 1 | $32.95 | |
| 3 | 2611-896 | DECAL,HOOD-"ARCTIC CAT" | 1 | $100.95 | |
| 4 | 3611-143 | DECAL,HOOD-LH ('98 440 PRO) | 1 | $170.95 | |
| 4 | 3611-142 | DECAL,HOOD-RH ('98 440 PRO) | 1 | $137.95 | |
| 5 | 0717-060 | FOAM,HOOD-CENTER-RH | 1 | $5.95 | |
| 5 | 0717-061 | FOAM,HOOD-CENTER-LH | 1 | $5.95 | |
| 6 | 0623-505 | SCREW,SELF TAP-HWH #6X5/8 TYP A Z&Y | 1 | $0.15 | |
| 7 | 2611-176 | DECAL,CAUTION-ENGINE/BATTERY | 1 | $17.95 | |
| 8 | 0616-438 | BRKT, HOOD HINGE | 1 | $6.95 | |
| 9 | 1611-575 | DECAL,WARNING-HOOD | 1 | $25.95 | |
| 10 | 0717-062 | FOAM,HOOD-UPPER-RH | 1 | $13.95 | |
| 10 | 0717-063 | FOAM,HOOD-UPPER-LH | 1 | $13.95 | |
| 11 | 2611-163 | DECAL,WARNING-BRAKE ENG/FRENCH | 1 | $19.95 | |
| 12 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 13 | 3611-141 | DECAL,HOOD-CENTER ('98 440 PRO) | 1 | $38.95 | |
| 14 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 15 | 1606-088 | BRKT,HOOD CABLE | 1 | $6.95 | |
| 16 | 1606-485 | DUCT,BRAKE-HOOD ('98 440 PRO) | 1 | $56.95 | |
| 17 | 1606-481 | WINDSHIELD,LOW-('98 440 PRO) | 1 | $117.95 | |
| 18 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 19 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 20 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 21 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 22 | 0616-614 | CABLE,HOOD-36.5 (.20 EYELET BOTH ENDS) | 1 | $15.11 | |
| 23 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 24 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 25 | 0623-413 | SCREW,MACH-PHTRH-10-32X 1/2-Z&Y | 1 | $0.25 | |
| 26 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 27 | 0716-856 | INTAKE,AIR-HOOD ('98 440 PRO) | 1 | $191.95 | |
| 28 | 1606-188 | BRKT,AIR DUCT | 1 | $23.39 | |
| 29 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 30 | 1606-484 | WIREFORM,AIR INTAKE-('98 440 PRO) | 1 | $3.57 | |
| 31 | 0617-289 | FOAM,AIR INTAKE-OPEN CELL ('98 440 PRO) | 1 | $13.95 | |
| 31 | 0617-295 | FOAM,CLOSED CELL-AIR INTAKE | 1 | $8.21 | |
| 32 | 3611-233 | DECAL,CAUTION-INTAKE FOAMS | 1 | $29.95 |
