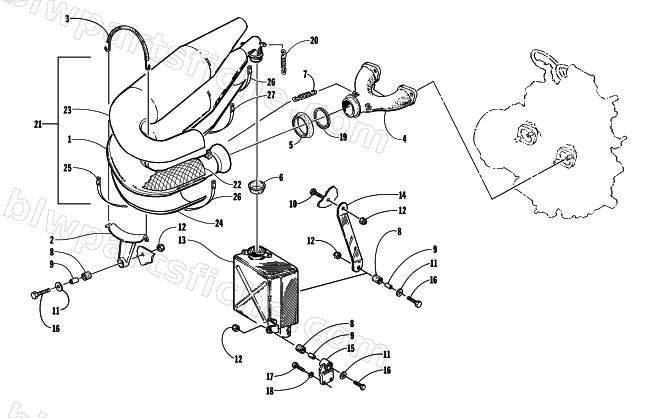

1998 Arctic Cat ZR 440 SNO-PRO — EXHAUST ASSEMBLY
1998 ZR 440 SNO-PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0712-283 | CHAMBER,EXPANSION-FAB ('98 440 PRO) | 1 | $1,242.95 | |
| 2 | 0712-281 | BRKT,MTG-EXP CHAMBER-WELDT ('98 SNO PRO) | 1 | $21.95 | |
| 3 | 0612-027 | SPRING EXTENSION | 1 | $27.95 | |
| 4 | 0712-280 | MANIFOLD,EXHAUST ('98 SNO PRO) | 1 | $212.95 | |
| 5 | 0612-748 | GASKET,EXHAUST-HEADPIPE | 1 | $34.95 | |
| 6 | 0612-693 | GASKET,EXHAUST JOINT-RESONATOR | 1 | $29.95 | |
| 7 | 2612-399 | SPRING,EXTENSION | 1 | $3.71 | |
| 8 | 0612-107 | BUSHING,RESONATOR MTG | 1 | $12.95 | |
| 10 | 0623-472 | SCREW, CAP HSBH 1/4X20X1- Z&Y | 1 | $0.95 | |
| 11 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 12 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 13 | 0712-684 | RESONATOR,EXHAUST-WELDT | 1 | $440.95 | |
| 14 | 0612-479 | BRKT,MTG-RESONATOR-OUTER | 1 | $15.11 | |
| 15 | 0712-207 | BRKT,MTG-RESONATOR-WELDT | 1 | $23.39 | |
| 16 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 17 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 18 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 19 | 0612-746 | SPACER,HEADPIPE | 1 | $20.63 | |
| 20 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 22 | 0612-862 | PACKING,EXP CHAMBER-('98 SNO PRO) | 1 | $31.95 | |
| 23 | 0612-860 | COVER,EXP CHAMBER-UPPER ('98 SNO PRO) | 1 | $170.95 | |
| 24 | 0612-861 | COVER,EXP CHAMBER-LOWER ('98 SNO PRO) | 1 | $162.95 | |
| 25 | 0624-180 | CABLE TIE,SS-.31" X 20.5" | 1 | $17.95 | |
| 26 | 0624-181 | CABLE TIE,SS-.31" X 14.3" | 1 | $16.95 | |
| 27 | 0624-437 | CABLE,TIE- .31 X 26.8"-SS | 1 | $14.95 |
