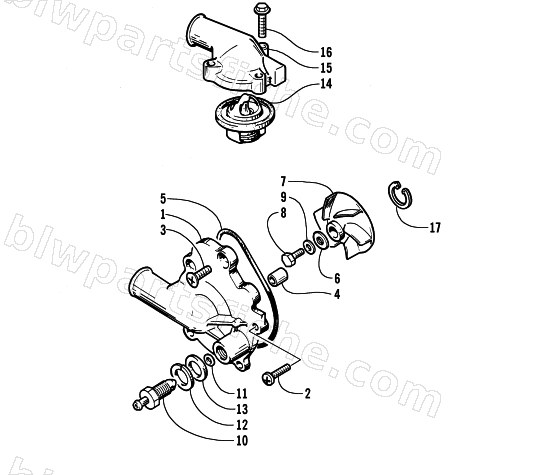

1998 Arctic Cat POWDER SPECIAL 600 EFI LE — WATER PUMP AND THERMOSTAT
1998 POWDER SPECIAL 600 EFI LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-519 | CASE, WATER PUMP | 1 | $283.95 | |
| 2 | 3007-555 | SCREW | 1 | $2.47 | |
| 3 | 3007-440 | SCREW | 1 | $2.06 | |
| 4 | 3005-206 | PIN (H:10),DOWEL | 1 | $3.30 | |
| 5 | 3003-372 | GASKET,O-RING PUMP | 1 | $17.87 | |
| 6 | 3003-432 | WASHER,6MM | 1 | $3.85 | |
| 7 | 3005-697 | IMPELLER,WATER PUMP | 1 | $54.95 | |
| 8 | 3003-426 | BOLT, 6 X 13 YEL CHROM. | 1 | $2.75 | |
| 9 | 3003-431 | WASHER,6MM | 1 | $3.44 | |
| 10 | 3003-618 | DRAIN,WATER | 1 | $47.95 | |
| 11 | 3005-226 | O RING, WATER DRAIN | 1 | $5.09 | |
| 12 | 3004-472 | WASHER, LOCK,12MM | 1 | $3.85 | |
| 13 | 3007-716 | WASHER,12MM | 1 | $3.16 | |
| 14 | 3004-964 | THERMOSTAT, WATER | 1 | $106.95 | |
| 15 | 3003-924 | CAP,THERMOSTAT | 1 | $79.95 | |
| 16 | 3007-380 | BOLT | 1 | $3.16 | |
| 17 | 3007-714 | CIRCLIP,BEARING FASTENER | 1 | $4.68 |
