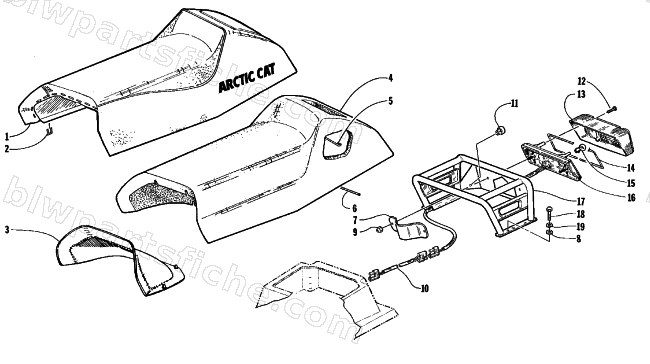

1998 Arctic Cat POWDER SPECIAL 600 EFI LE — SEAT AND TAILLIGHT ASSEMBLY
1998 POWDER SPECIAL 600 EFI LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0716-125 | SEAT COVER 98 Z/ZL | 1 | $627.95 | |
| 2 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 3 | 1606-126 | INSERT,SEAT FOAM | 1 | $90.95 | |
| 4 | 0716-536 | FOAM.SEAT CUSHION | 1 | $189.95 | |
| 5 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 7 | 1606-429 | PLATE,PROTECTOR-TAILLIGHT-PTD BLK | 1 | $17.95 | |
| 8 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 9 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 10 | 0686-054 | HARNESS,EXTENSION-MC TAILLIGHT | 1 | $43.95 | |
| 11 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 12 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 13 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 14 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 15 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 16 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 18 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 19 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 |
