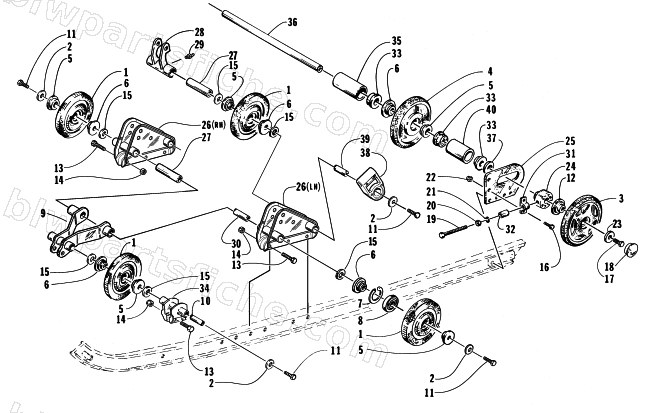

1998 Arctic Cat POWDER SPECIAL 600 EFI LE — REAR SUSPENSION AXLE ASSEMBLY
1998 POWDER SPECIAL 600 EFI LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0604-459 | WHEEL,IDLER | 1 | $53.95 | |
| 2 | 0123-260 | WSHR,.343X1 1/8X.120TH Z&Y | 1 | $1.50 | |
| 3 | 0604-980 | WHEEL,IDLER-6.38"-REAR-GRN | 1 | $53.95 | |
| 4 | 0604-210 | WHEEL,IDLER-CENTER | 1 | $53.95 | |
| 5 | 1604-773 | INSERT,5/8 BORE X 1.580 OD | 1 | $5.51 | |
| 6 | 1604-772 | INSERT,5/8 BORE X 2 OD (SHORT) | 1 | $5.51 | |
| 7 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 8 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 9 | 0704-319 | BRACKET,FRONT SHOCK-PTD BLK | 1 | $54.95 | |
| 11 | 8012-132 | SCREW,CAP-HHNLP 5/16-18X1.0 G5 Z&Y | 1 | $0.65 | |
| 12 | 1604-774 | INSERT,5/8 BORE X 2" (LONG) | 1 | $6.34 | |
| 13 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 14 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 15 | 0123-439 | WSHR,FLAT 21/32X1-1/8X.048 Z&Y | 1 | $0.40 | |
| 16 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 17 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 18 | 0604-246 | CAP,IDLER WHEEL-BLACK (DP 1500) | 1 | $3.16 | |
| 19 | 0623-123 | SCREW,CAP-HEX-3/8-16X5 | 1 | $2.47 | |
| 20 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 21 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 22 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 23 | 0123-570 | WASHER,FLAT .390X1.38X.134 | 1 | $5.92 | |
| 24 | 0604-165 | BUSHING,REAR WHEEL-ADJ. | 1 | $10.97 | |
| 26 | 0704-310 | BRKT, MTG - RH | 1 | $47.95 | |
| 26 | 0704-311 | BRKT,MTG-LH | 1 | $59.95 | |
| 27 | 0603-105 | SPACER,AUX WHEEL-INSIDE | 1 | $13.73 | |
| 28 | 0704-589 | PIVOT,REAR SHOCK-PTD BLK | 1 | $30.95 | |
| 29 | 9916-963 | ZERK,.188 X.094 SHANK (PRESS FIT) | 1 | $3.71 | |
| 30 | 0604-081 | AXLE, INNER | 1 | $40.95 | |
| 31 | 0604-206 | TRACK ADJUSTOR-MACHINED | 1 | $13.73 | |
| 32 | 0604-298 | SPACER,SHOCK LINK-Z&Y | 1 | $33.95 | |
| 33 | 0604-968 | BUSHING,SPACER-REAR WHEEL | 1 | $9.59 | |
| 34 | 0704-201 | BRACKET,AUX WHEEL-PTD BLK | 1 | $26.95 | |
| 35 | 1704-466 | SPACER,REAR WHEEL-PTD BLK | 1 | $17.87 | |
| 36 | 0604-208 | AXLE,REAR WHEEL | 1 | $53.95 | |
| 37 | 0623-220 | WASHER,FLAT .625IDX1.50ODX.109 | 1 | $4.95 | |
| 38 | 2604-516 | SLIDE, SPRING-TALL | 1 | $6.06 | |
| 39 | 0114-055 | AXLE,SHOCK BRKT | 1 | $50.95 | |
| 40 | 0604-712 | SPACER,REAR WHEEL-OUTER | 1 | $14.95 |
