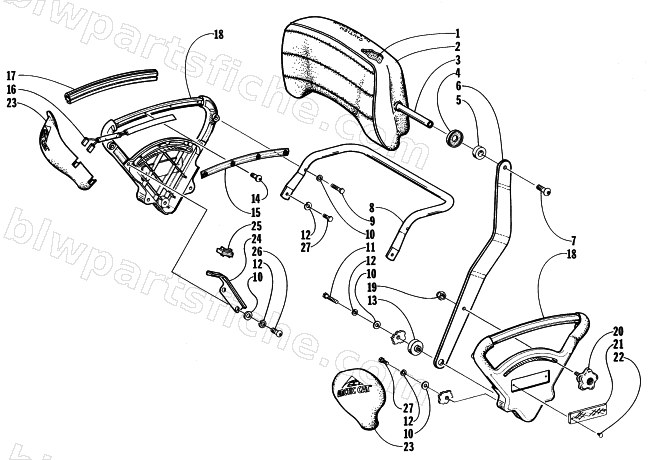

1998 Arctic Cat PANTHER 550 — BACKREST ASSEMBLY
1998 PANTHER 550
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0716-737 | BACKREST-W/COVER | 1 | $371.95 | |
| 2 | 0716-739 | COVER, BACKREST | 1 | $100.95 | |
| 3 | 0114-163 | AXLE,INNER CARRIAGE | 1 | $56.95 | |
| 4 | 0723-003 | WASHER,CUP-PTD BLK | 1 | $9.59 | |
| 5 | 0616-547 | BLOCK,TENSION-BACKREST | 1 | $5.65 | |
| 6 | 1606-236 | ARM,ADJ BACKREST-RH | 1 | $133.95 | |
| 6 | 1606-237 | ARM,ADJ BACKREST-LH | 1 | $119.95 | |
| 7 | 0623-566 | SCREW,MACH-HSBH 3/8-16X1.25 BLK Z | 1 | $1.64 | |
| 8 | 1606-248 | TUBE,LIFT | 1 | $70.95 | |
| 9 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 10 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 11 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 12 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 13 | 1606-242 | SPACER,BACKREST ADJ. | 1 | $10.95 | |
| 14 | 0623-727 | SCREW,SELF TAP-TSPNH 10-16X5/8 TYPE AB Z | 1 | $1.37 | |
| 15 | 1606-093 | RETAINER,GRIP-PASSENGER | 1 | $12.35 | |
| 16 | 0609-369 | HANDWARMER,ELEMENT-PASS. | 1 | $71.95 | |
| 17 | 1606-243 | HANDGRIP, PASSENGER HANDHOLD | 1 | $33.95 | |
| 18 | 1606-235 | BRKT, HANDHOLD/BACKREST ADJUSTER | 1 | $122.95 | |
| 19 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 21 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 22 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 23 | 1606-238 | DEFLECTOR,WIND-RH | 1 | $56.95 | |
| 23 | 1606-239 | DEFLECTOR,WIND-LH | 1 | $56.95 | |
| 24 | 1606-240 | BRKT,MTG-WARMER SWITCH | 1 | $17.87 | |
| 25 | 0609-370 | SWITCH,PASSENGER HANDWARMER | 1 | $46.95 | |
| 26 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 27 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 |
