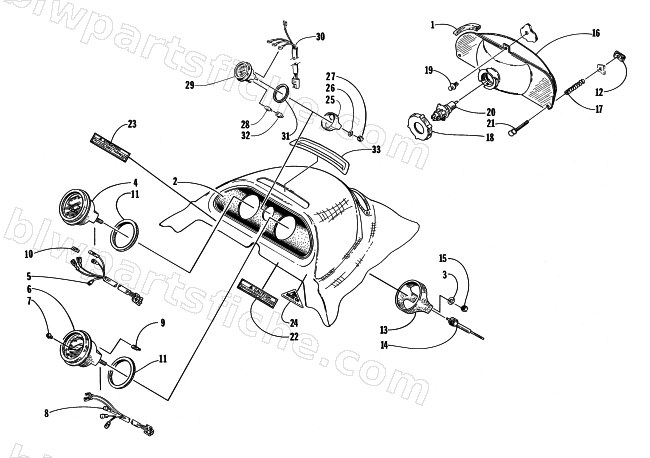

HEADLIGHT AND INSTRUMENTS
1998 PANTERA 800
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0617-173 | SEAL,HEADLIGHT .50 X .75 X 30 | 1 | $3.95 | |
| 2 | 2611-967 | DECAL,HOOD-CONSOLE | 1 | $48.95 | |
| 3 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 4 | 0620-237 | TACHOMETER, ELEC-12P W/O AC LOGO | 1 | $306.95 | |
| 5 | 0620-215 | HARNESS,TACH-W/O ICON | 1 | $117.95 | |
| 6 | 0620-238 | SPEEDOMETER, 100MPH-W/O AC LOGO | 1 | $237.95 | |
| 7 | 0620-073 | KNOB,TRIPMETER | 1 | $15.11 | |
| 8 | 0620-151 | HARNESS,SPEEDOMETER BULB | 1 | $117.95 | |
| 9 | 0230-020 | BULB, T-10 WEDGE BASE-12 V 3.4W | 1 | $3.16 | |
| 10 | 0620-149 | BULB,T-10 WEDGE BASE-12V 1.7W | 1 | $4.95 | |
| 11 | 0620-135 | RING, RUBBER CUSHION-TACH/SPEEDO | 1 | $3.57 | |
| 12 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 13 | 0620-134 | BACKCLAMP, TACH/SPEEDO | 1 | $17.95 | |
| 14 | 0620-269 | CABLE, SPEEDOMETER-96" | 1 | $68.95 | |
| 15 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 16 | 0609-245 | LENS/REFLECTOR-HEADLIGHT(REF0609-244) | 1 | $158.95 | |
| 17 | 0623-466 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $5.78 | |
| 18 | 0609-296 | COLLAR, LOCKING-HEADLIGHT (THIN) | 1 | $13.73 | |
| 19 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 20 | 0109-724 | R/B 0609-956 | 1 | $29.95 | |
| 21 | 0623-467 | SCREW,THUMB-1/4X20X3.5 | 1 | $15.11 | |
| 22 | 2611-753 | DECAL,CAUTION-FUEL | 1 | $26.95 | |
| 23 | 2611-754 | DECAL,CAUTION-FUEL-FRENCH | 1 | $84.95 | |
| 24 | 3611-003 | DECAL,DOME-"MADE IN U.S.A." | 1 | $7.95 | |
| 25 | 0620-138 | BACKCLAMP, FUEL GAUGE | 1 | $16.49 | |
| 26 | 8050-122 | WASHER,FLAT- #8 X .438 X .049 Z&Y | 1 | $3.85 | |
| 27 | 0623-457 | NUT,HEX 8-32 W/LOCKWASHER | 1 | $0.15 | |
| 29 | 0620-240 | GAUGE, FUEL-AC W/O LOGO | 1 | $168.95 | |
| 30 | 0620-092 | HARNESS,FUEL GAUGE | 1 | $42.95 | |
| 31 | 0620-139 | RING, RUBBER CUSHION-FUEL GAUGE | 1 | $3.85 | |
| 32 | 0620-279 | BULB,TACH SPEEDO ASSY | 1 | $5.95 | |
| 33 | 1606-399 | VENT,HOOD-98 POWDER EXTREME | 1 | $13.73 |
