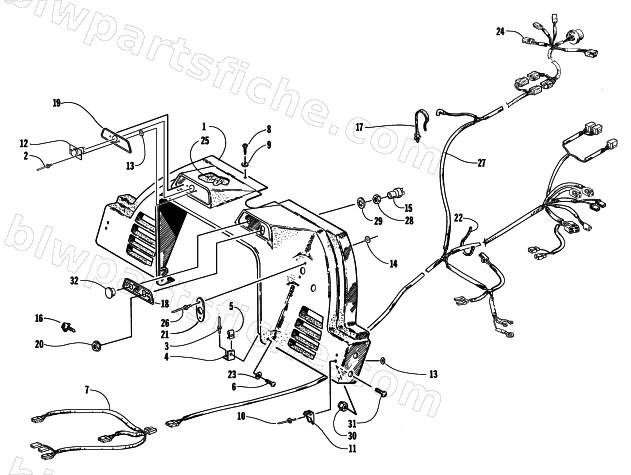

1998 Arctic Cat PANTERA 580 — CONSOLE, SWITCHES, AND WIRING ASSEMBLIES
1998 PANTERA 580
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1606-226 | CONSOLE-W/REV&12V PLUG | 1 | $322.95 | |
| 3 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 5 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 6 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 7 | 0686-107 | HARNESS,HANDWARM-PSGR | 1 | $30.95 | |
| 8 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 9 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 10 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 11 | 0115-307 | LATCH CUP,HOOD | 1 | $1.23 | |
| 12 | 0445-001 | RECEPTACLE,12V ACC | 1 | $30.95 | |
| 13 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 14 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 15 | 0609-082 | SWITCH,IGNITION | 1 | $54.95 | |
| 16 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 17 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 18 | 2611-998 | DECAL,CONSOLE SWITCH-RH | 1 | $22.95 | |
| 19 | 2611-999 | DECAL,CONSOLE SWITCH-LH | 1 | $23.95 | |
| 20 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 21 | 0606-211 | PLATE,RECOIL | 1 | $19.25 | |
| 22 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 23 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 24 | 0686-379 | HARNESS,HEADLIGHT | 1 | $126.95 | |
| 25 | 0617-178 | FOAM,CONSOLE RH | 1 | $5.95 | |
| 26 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 27 | 0686-444 | HARNESS,MAIN WIRING | 1 | $282.95 | |
| 28 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 29 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 30 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 31 | 8017-610 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 BLK Z | 1 | $5.92 | |
| 32 | 0623-593 | PLUG,HOLE 1/2-STEEL | 1 | $5.09 |
