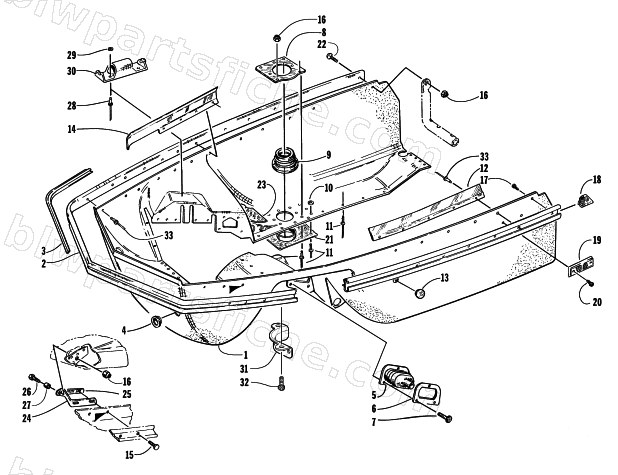

1998 Arctic Cat PANTERA 580 — BELLY PAN ASSEMBLY
1998 PANTERA 580
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1606-203 | BELLYPAN | 1 | $1,172.95 | |
| 2 | 0716-758 | BUMPER, FORMED | 1 | $282.95 | |
| 3 | 0616-700 | INSERT,BUMPER-CTL 124" BLK | 1 | $32.95 | |
| 4 | 0616-348 | PLUG,BELLYPAN 1.12 | 1 | $1.50 | |
| 7 | 0623-574 | SCREW,SELF TAP-TSTRH 10-24 X 5/8 TP F Z | 1 | $6.47 | |
| 8 | 0712-881 | RING,EXHAUST OUTLET-UPPER-PTD BLK | 1 | $10.95 | |
| 9 | 0612-470 | BOOT,EXHAUST | 1 | $54.95 | |
| 10 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 11 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 12 | 0616-832 | GUIDE,HOOD-BUMPER | 1 | $32.95 | |
| 13 | 0623-600 | PLUG,BELLYPAN-2.00 | 1 | $4.82 | |
| 14 | 0616-834 | GUIDE,HOOD-RH | 1 | $23.95 | |
| 14 | 0616-835 | GUIDE,HOOD-LH | 1 | $23.95 | |
| 15 | 0623-472 | SCREW, CAP HSBH 1/4X20X1- Z&Y | 1 | $0.95 | |
| 16 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 17 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 18 | 0616-396 | CAP,BUMPER END RH | 1 | $6.75 | |
| 18 | 0616-397 | CAP,BUMPER END LH | 1 | $6.75 | |
| 19 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 20 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 21 | 0712-880 | RING,EXHAUST OUTLET-LOWER-PTD BLK | 1 | $13.95 | |
| 22 | 0623-458 | BOLT,CARRIAGE-.250X1.00 ZY | 1 | $0.95 | |
| 23 | 0706-548 | FOIL,3 X 12(0619-728) | 1 | $6.06 | |
| 24 | 0716-244 | BRKT,HOOD HINGE-RH (WELD'T) | 1 | $26.95 | |
| 24 | 0716-245 | BRKT,HOOD HINGE-LH (WELD'T) | 1 | $18.59 | |
| 25 | 0616-454 | PLATE,BACKING-HOOD HINGE | 1 | $46.95 | |
| 26 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 27 | 0107-234 | BUSHING,TIGHTENER ARM | 1 | $16.95 | |
| 28 | 8060-628 | RIVET,BLIND-DH AA66 BLK | 1 | $1.23 | |
| 29 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 30 | 4639-549 | RIVET MOUNTED PLUG HOLDER | 1 | $9.95 | |
| 31 | 0712-879 | DEFLECTOR,EXHAUST-OUTLET-PTD BLK | 1 | $13.95 | |
| 32 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 33 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 |
