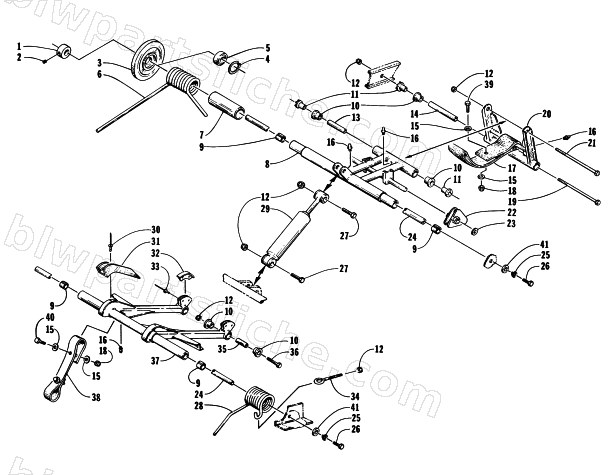

REAR SUSPENSION ARM ASSEMBLIES
1998 JAG 340
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-853 | COLLAR,LOCK-IDLER WHEEL-PTD BLK | 1 | $45.95 | |
| 2 | 0623-217 | SCREW,SET 1/4-20X.25 TYPE G | 1 | $0.35 | |
| 3 | 0604-374 | WHEEL,IDLER-5.63 W/1 ID | 1 | $53.95 | |
| 4 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 5 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 6 | 1704-156 | SPRING,SUSPENSION-RH PTD BLK | 1 | $62.95 | |
| 6 | 1704-157 | SPRING,SUSPENSION-LH PTD BLK | 1 | $62.95 | |
| 7 | 0114-254 | SLEEVE,SPRING | 1 | $6.95 | |
| 8 | 0704-241 | ARM,IDLER-REAR | 1 | $355.95 | |
| 9 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 10 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 11 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 12 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 13 | 0604-204 | AXLE,IDLER-LOWER | 1 | $44.95 | |
| 15 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 16 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 17 | 0604-765 | STRAP,LIMITER-REAR | 1 | $26.95 | |
| 18 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 19 | 0623-782 | SCREW,CAP-HH 3/8-16X10 GR 8 Z&Y | 1 | $13.73 | |
| 20 | 0704-177 | ARM,REAR-FABRICATION | 1 | $129.95 | |
| 21 | 0623-106 | SCREW,CAP 3/8-16X8 ZN/YLW GR5 | 1 | $2.95 | |
| 22 | 0604-556 | BLOCK,SPRING ADJUSTER RH | 1 | $31.95 | |
| 22 | 0604-557 | BLOCK,SPRING ADJUSTER LH | 1 | $34.95 | |
| 23 | 0623-138 | RING,RETAINING-ADJ BLOCK 9/16 | 1 | $0.68 | |
| 24 | 0114-163 | AXLE,INNER CARRIAGE | 1 | $56.95 | |
| 25 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 26 | 8012-224 | SCREW,CAP-HHNLP 3/8-16X1.25 G5 Z&Y | 1 | $12.35 | |
| 27 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 28 | 1704-439 | SPRING,SUSP.-LH FRT-PTD BLK | 1 | $142.95 | |
| 28 | 1704-438 | SPRING,SUSP.-RH FRT-PTD BLK | 1 | $142.95 | |
| 29 | 0604-737 | SHOCK ABSORBER,REAR ARM | 1 | $139.95 | |
| 30 | 0623-149 | RIVET,CHERRY SSPQ56 | 1 | $1.95 | |
| 32 | 0604-183 | BUMPER,TRACK GUIDE | 1 | $32.95 | |
| 33 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 34 | 2272-037 | BOLT,CLOSED EYE,3/8-16UNC W | 1 | $20.95 | |
| 35 | 0104-629 | SPACER,FRONT ARM-PIVOT | 1 | $19.25 | |
| 37 | 0704-239 | FRONT ARM-FABRICATED | 1 | $350.95 | |
| 38 | 0604-753 | STRAP,LIMITER | 1 | $31.95 | |
| 40 | 8012-042 | SCREW,CAP-HHNLP 1/4-20X1.0 G5 Z&Y | 1 | $0.65 | |
| 41 | 0624-044 | SNAPRING-REAR -PUMP-SS(N1300-187) | 1 | $37.95 |
