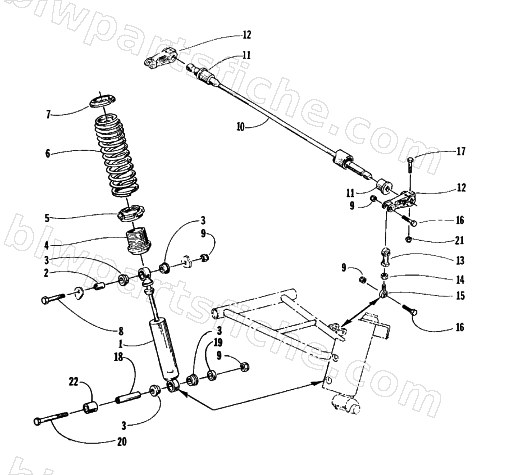

1998 Arctic Cat EXT EFI DLX — SHOCK ABSORBER AND SWAY BAR ASSEMBLY
1998 EXT EFI DLX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1603-172 | SHOCK,SKI | 1 | $414.95 | |
| 2 | 0604-309 | SLEEVE,SHOCK ABSORBER | 1 | $2.33 | |
| 3 | 0604-310 | BUSHING,SHOCK ABSORBER | 1 | $6.75 | |
| 4 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 | |
| 5 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 6 | 0703-482 | SPRING,COMPRESSION-110 LBS-PTD GRN | 1 | $90.95 | |
| 7 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 9 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 10 | 0703-202 | SWAY BAR, 7/16-PAINTED | 1 | $108.95 | |
| 11 | 0603-151 | BEARING,SWAY BAR-SQUARE | 1 | $23.39 | |
| 12 | 0603-558 | ARM,SWAYBAR-PTD BLK | 1 | $78.95 | |
| 13 | 0105-236 | BALL JOINT,TIE ROD (FEMALE) | 1 | $41.95 | |
| 14 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 15 | 0605-202 | ROD END-RH | 1 | $84.95 | |
| 16 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 17 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 18 | 1604-184 | SLEEVE, SHOCK ABSORBER | 1 | $42.95 | |
