1998 Arctic Cat EXT 580 EFI — AIR SILENCER AND ECU TRAY MOUNTING
1998 EXT 580 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

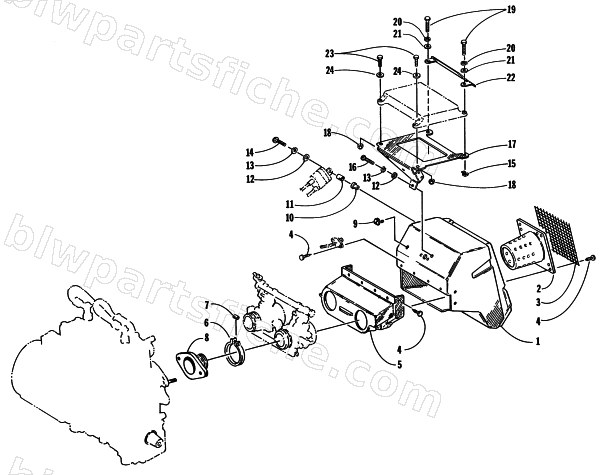

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-224 | SILENCER, AIR-W/INSERTS 97 PS EFI | 1 | $106.95 | |
| 2 | 0670-151 | FUNNEL,AIR SILENCER | 1 | $29.95 | |
| 3 | 0670-155 | SCREEN,AIR INTAKE | 1 | $44.95 | |
| 4 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 5 | 0670-221 | BOOT,AIR SILENCER | 1 | $66.95 | |
| 6 | 0616-986 | COVER,ECU WIRE PROTECTOR | 1 | $13.95 | |
| 7 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 8 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 9 | 0623-403 | CLAMP,PUSH MOUNT | 1 | $0.95 | |
| 10 | 0623-529 | INSERT,AL SERIES ALS7-1032-225 | 1 | $2.95 | |
| 11 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 12 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 13 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 15 | 0623-157 | RETAINER NUT,1/4-20 | 1 | $3.85 | |
| 16 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 17 | 0616-984 | TRAY,MOUNTING-ECU | 1 | $13.95 | |
| 18 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 19 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 20 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 21 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 |
