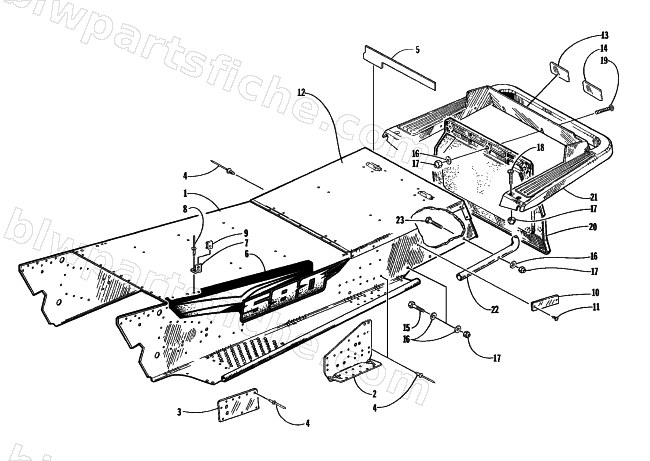

TUNNEL AND REAR BUMPER
1998 EXT 580 EFI DLX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-594 | TUNNEL-ASSY 98 EXT EFI DLX | 1 | $795.95 | |
| 2 | 2706-608 | BRACKET,SUSP.RH-PTD BLK | 1 | $92.95 | |
| 2 | 2706-609 | BRACKET,SUSP.LH-PTD BLK | 1 | $92.95 | |
| 3 | 2706-111 | PLATE,BODY-REINFORCEMENT-PTD BLK | 1 | $14.95 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 5 | 2611-940 | DECAL,FASTRACK/ETT | 1 | $81.95 | |
| 6 | 2611-898 | DECAL,TUNNEL-RH | 1 | $60.95 | |
| 6 | 2611-899 | DECAL,TUNNEL-LH | 1 | $60.95 | |
| 8 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 9 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 10 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 11 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 12 | 0616-728 | PLATE,END-REAR TUNNEL | 1 | $256.95 | |
| 13 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 14 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 15 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 8007-585 | SCREW,MACH-CRTH 1/4-20X1.50 G2 Z&Y | 1 | $0.40 | |
| 19 | 8017-582 | R/B 1623-689 | 1 | $0.65 | |
| 20 | 0616-613 | SNOWFLAP,REV- | 1 | $68.95 | |
| 21 | 0716-223 | BUMPER W/STEEL INSERT | 1 | $181.95 | |
| 21 | 0616-730 | BUMPER,REAR-'ETT' | 1 | $172.95 | |
| 22 | 2706-600 | INSERT,BUMPER-PTD BLK | 1 | $64.95 | |
| 23 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 |
