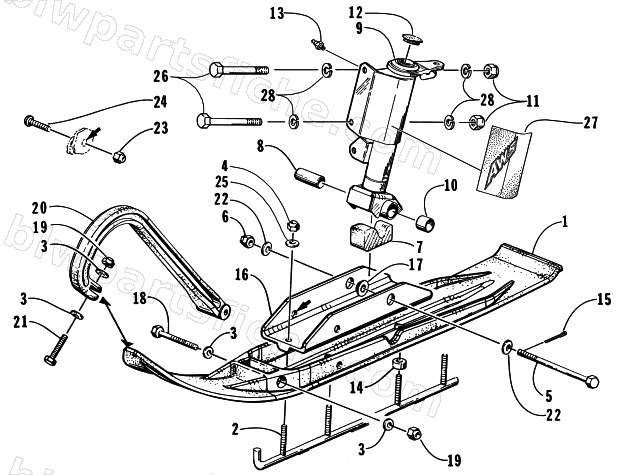

SKI AND SPINDLE ASSEMBLY
1998 COUGAR DELUXE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0603-668 | SKI,PLASTIC-MACHINED | 1 | $215.95 | |
| 1 | 0703-492 | SKI,PLASTIC-MACH(WIDE/DEEP) | 1 | $318.95 | |
| 2 | 1703-003 | SKAG, LONG-4'CRB/HDWELD,PTD BLK | 1 | $65.95 | |
| 2 | 0703-175 | SKAG-PTD BLK | 1 | $26.95 | |
| 3 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 3 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 4 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 5 | 0623-552 | SCREW,CAP-HH 7/16-20 X 4.50 W/HOLE | 1 | $12.35 | |
| 5 | 0623-080 | SCREW,CAP W/HOLE-HH 7/16-14X4 1/4 GR5 Z& | 1 | $20.63 | |
| 6 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 6 | 0623-027 | NUT,FLEX7/16-14 NC | 1 | $6.95 | |
| 7 | 0603-036 | DAMPER, SKI RUBBER | 1 | $17.87 | |
| 8 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 9 | 0703-396 | SPINDLE/HOUSING-MFG ASSY-RH | 1 | $452.95 | |
| 9 | 0703-397 | SPINDLE/HOUSNG-MFG ASSY-LH | 1 | $452.95 | |
| 10 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 11 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 12 | 0603-049 | CAP, SPINDLE | 1 | $0.68 | |
| 13 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 14 | 0603-616 | SPACER,SADDLE | 1 | $20.63 | |
| 15 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 16 | 0703-269 | SADDLE,SKI-ASSY | 1 | $78.95 | |
| 17 | 0603-621 | INSERT-SKI SADDLE | 1 | $4.95 | |
| 18 | 8002-143 | SCREW,CAP-HH 5/16-18 X3.50 G5 Z&Y | 1 | $1.64 | |
| 19 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 20 | 0603-624 | HANDLE,PLASTIC-BLACK | 1 | $32.95 | |
| 21 | 8002-135 | SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y | 1 | $0.65 | |
| 22 | 8050-307 | WASHER,FLAT- 7/16 X .922 X .065 Z&Y | 1 | $0.15 | |
| 23 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 24 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 25 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 26 | 8013-234 | SCREW,CAP-HH 3/8-16 X 4.00 GR8 Z&Y | 1 | $1.50 | |
| 27 | 2611-808 | DECAL, SPINDLE - RH | 1 | $20.95 | |
| 27 | 2611-809 | DECAL, SPINDLE - LH | 1 | $20.95 | |
| 28 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 |
