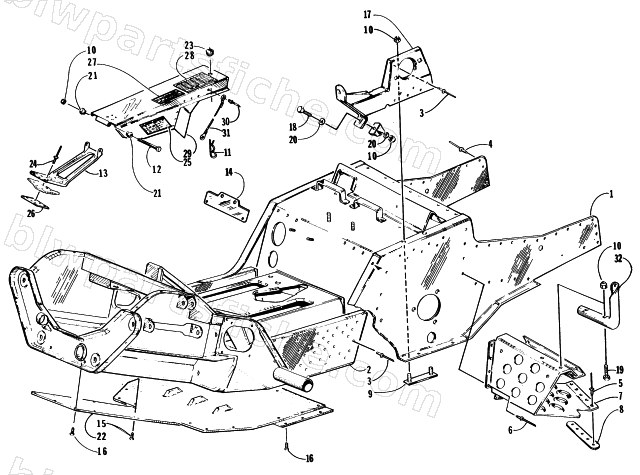

1998 Arctic Cat COUGAR DELUXE — FRONT FRAME, FOOTREST, AND BELT GUARD ASSEMBLY
1998 COUGAR DELUXE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-273 | CHASSIS/FRONT END ASSY 97 CO | 1 | $653.95 | |
| 1 | 0707-305 | CHASSIS-FNT END 98 CO M/C | 1 | $1,293.95 | |
| 2 | 0707-189 | FRONT END-WELDMENT | 1 | $1,547.95 | |
| 3 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 6 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 7 | 0706-917 | FOOTREST-LH (PAINTED BLK - 0616-287) | 1 | $163.95 | |
| 7 | 0706-916 | FOOTREST-RH (PAINTED BLK - 0616-286) | 1 | $165.95 | |
| 8 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 9 | 0707-840 | PLATE,BEARING MTG-PTD BLK | 1 | $23.39 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 12 | 8002-050 | SCREW,CAP-HH 1/4-20 X2.75 G5 Z&Y | 1 | $2.95 | |
| 13 | 0616-658 | BRKT,MTG-GUARD | 1 | $21.95 | |
| 14 | 0605-213 | PLATE,BACKING-FRONT COVER | 1 | $15.11 | |
| 15 | 0623-569 | SCREW,SELF TAP-TSFH #10-32X1/2 TYPF Z&Y | 1 | $0.68 | |
| 16 | 0623-574 | SCREW,SELF TAP-TSTRH 10-24 X 5/8 TP F Z | 1 | $6.47 | |
| 18 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 19 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 20 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 21 | 0607-094 | INSERT,HINGE-GUARD | 1 | $0.95 | |
| 23 | 0607-097 | GROMMET,GUARD | 1 | $1.92 | |
| 24 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 25 | 1611-582 | DECAL,CAUTION-JETTING/STORAGE | 1 | $13.73 | |
| 26 | 0616-345 | PLATE,BACKING-CLUTCH SHIELD MNT | 1 | $47.95 | |
| 27 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 28 | 2611-786 | DECAL,JET CHART | 1 | $6.95 | |
| 29 | 0707-841 | SHIELD,CLUTCH-ASS'Y-PTD BLK | 1 | $120.95 | |
| 31 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 32 | 0716-340 | TUBE,BUMPER SUPPORT-RH | 1 | $13.73 | |
| 32 | 0716-341 | TUBE,BUMPER SUPPORT-LH | 1 | $10.95 |
