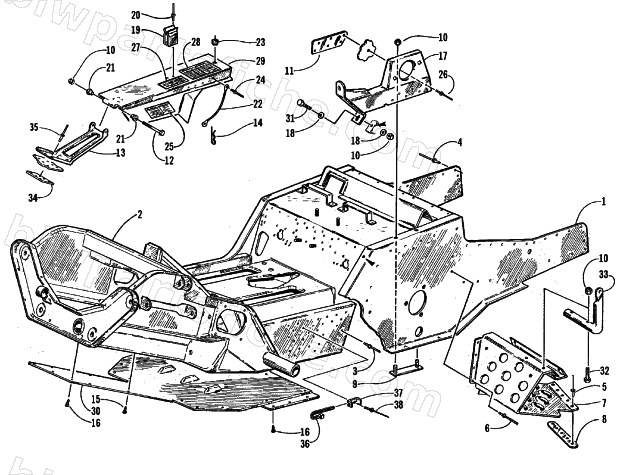

1998 Arctic Cat BEARCAT WIDE TRACK — FRONT FRAME, FOOTREST, AND GUARD ASSEMBLY
1998 BEARCAT WIDE TRACK
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-231 | FRONTEND,ALUM FAB 550 W/T | 1 | $1,002.95 | |
| 2 | 0707-858 | FRONT END-PTD BLK | 1 | $746.95 | |
| 3 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 5 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 6 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 7 | 0606-198 | FOOTREST-RH,PAINTED | 1 | $157.95 | |
| 7 | 0606-197 | FOOTREST-LH,PAINTED | 1 | $152.95 | |
| 8 | 0616-368 | PLATE,BACKING-FOOTREST/RIVET | 1 | $1.95 | |
| 9 | 0707-840 | PLATE,BEARING MTG-PTD BLK | 1 | $23.39 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 0607-388 | PLATE,BACKING-BEARING SUPPORT | 1 | $3.99 | |
| 12 | 8002-050 | SCREW,CAP-HH 1/4-20 X2.75 G5 Z&Y | 1 | $2.95 | |
| 13 | 0616-658 | BRKT,MTG-GUARD | 1 | $21.95 | |
| 14 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 15 | 0623-569 | SCREW,SELF TAP-TSFH #10-32X1/2 TYPF Z&Y | 1 | $0.68 | |
| 16 | 0623-574 | SCREW,SELF TAP-TSTRH 10-24 X 5/8 TP F Z | 1 | $6.47 | |
| 18 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 19 | 0636-659 | KIT, DRIVE BELT HOLDER | 1 | $13.73 | |
| 20 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 21 | 0607-094 | INSERT,HINGE-GUARD | 1 | $0.95 | |
| 22 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 23 | 0607-097 | GROMMET,GUARD | 1 | $1.92 | |
| 25 | 1611-582 | DECAL,CAUTION-JETTING/STORAGE | 1 | $13.73 | |
| 26 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 27 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 28 | 2611-781 | DECAL,JET CHART - W/T | 1 | $11.95 | |
| 29 | 0707-219 | GUARD,ASSY | 1 | $133.95 | |
| 30 | 0716-396 | PLATE,SKID | 1 | $123.95 | |
| 31 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 32 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 33 | 0716-310 | TUBE,BUMPER-SUPPORT | 1 | $18.95 | |
| 34 | 0616-345 | PLATE,BACKING-CLUTCH SHIELD MNT | 1 | $47.95 | |
| 35 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 36 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 37 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 38 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 |
