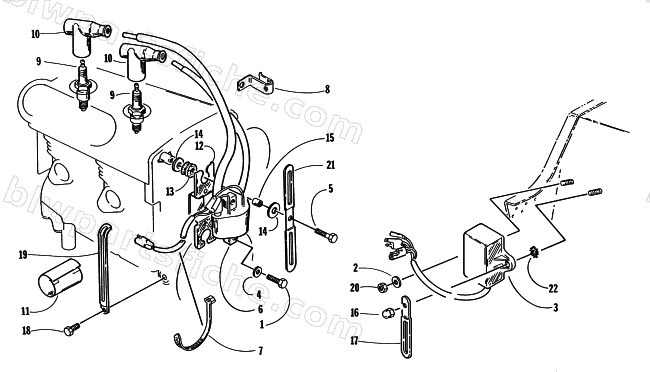

1998 Arctic Cat BEARCAT 440 — ELECTRICAL
1998 BEARCAT 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3004-342 | BOLT, 6X20 | 1 | $6.34 | |
| 2 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 3 | 3005-169 | CDI UNIT | 1 | $532.95 | |
| 4 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 5 | 3005-154 | BOLT,6MM | 1 | $2.95 | |
| 6 | 3005-170 | COIL ASSY, IGNITION | 1 | $284.95 | |
| 7 | 0693-276 | CLAMP,M25 | 1 | $5.95 | |
| 8 | 3003-557 | CLAMP,CORD,M11 | 1 | $10.97 | |
| 9 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 10 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 11 | 3003-474 | COVER, CONNECTOR 88 650 WILDCAT | 1 | $20.95 | |
| 12 | 3003-385 | BRACKET, IGNITION (ELEC) | 1 | $28.95 | |
| 13 | 3003-534 | CUSHION,IGN COIL BKT | 1 | $13.95 | |
| 14 | 3004-474 | WASHER | 1 | $1.95 | |
| 15 | 3003-666 | SPACER,6MM | 1 | $4.95 | |
| 17 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 18 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 19 | 3002-718 | CLAMP,WIRE | 1 | $21.95 | |
| 20 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 21 | 3003-539 | CLAMP,M6 | 1 | $6.95 | |
| 22 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 |
