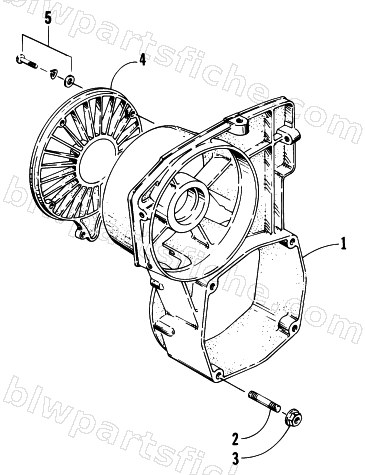

1998 Arctic Cat BEARCAT 340 — FAN HOUSING
1998 BEARCAT 340
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-131 | CASE, COOLING FAN | 1 | $501.95 | |
| 2 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 3 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 4 | 3002-781 | COVER,FAN | 1 | $14.95 | |
| 5 | 3007-562 | SCREW,4X20 | 1 | $2.95 |
