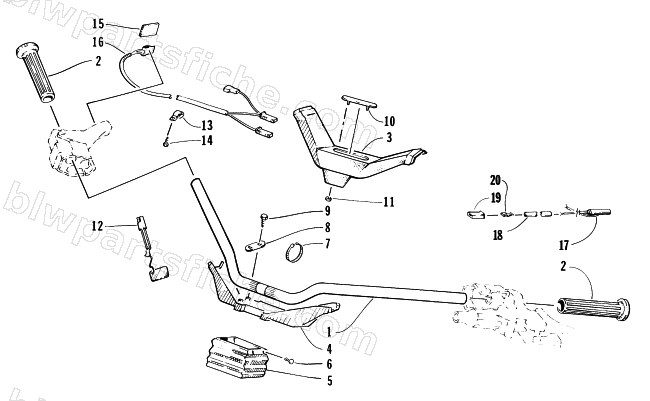

1997 Arctic Cat ZRT 800 — HANDLEBAR ASSEMBLY
1997 ZRT 800
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 1 | 0605-077 | HANDLEBAR - PAINTED | 1 | $81.95 | |
| 2 | 2606-084 | GRIP, HANDLEBAR-5.60" | 1 | $16.49 | |
| 4 | 0705-160 | HOUSING, HANLDEBAR PAD | 1 | $54.95 | |
| 6 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 7 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 8 | 0605-094 | PLATE,MTG-HANDLE BAR PAD HOUSING | 1 | $37.95 | |
| 9 | 0123-875 | SCREW,METAL HEX #10X5/8 | 1 | $0.15 | |
| 11 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 12 | 0709-057 | PLUG,BY-PASS-IGNITION(2-PRONG) | 1 | $26.95 | |
| 13 | 0623-169 | CLAMP,WIRE-3/16 ID | 1 | $8.21 | |
| 14 | 0623-200 | SCREW,SELF TAP #8X5/16 | 1 | $0.15 | |
| 15 | 0617-109 | PAD,INSULATOR-THUMB WARMER | 1 | $21.95 | |
| 16 | 0636-766 | KIT, THUMBWARMER W/SWITCH | 1 | $44.95 | |
| 17 | 0115-356 | HEATER,HANDLEBAR 32.00" | 1 | $66.95 | |
| 18 | 0706-528 | GEON TUBING-10 FT ROLL | 1 | $13.95 | |
| 19 | 0230-015 | CONN BODY RECPT 1CON | 1 | $1.95 | |
| 20 | 0231-007 | TERMINAL FMALE 2 COND | 1 | $2.95 |
